Adaptall Stainless 316 Mbspp X Mnpt SS9007-12-04

Specifications

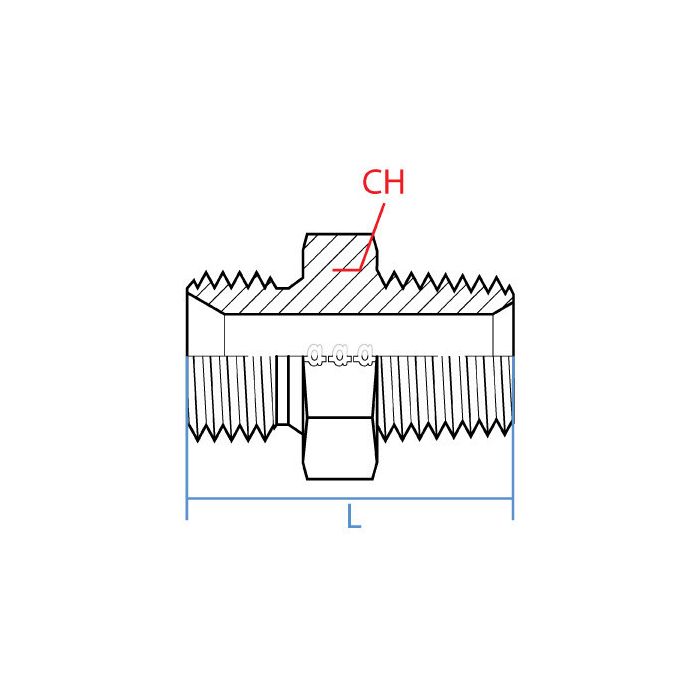

CH Width 32mm	L Length 42.1mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9007-12-04	Product Weight 0.40 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s G 3/4 - 14 BSPP and my port is 1/4 - 18 NPTF… is this the straight adapter that ties those two together

Question by: Rusty F on Nov 12, 2025, 7:40 AM

Made for mixing thread styles, it connects a male G 3/4 - 14 BSPP on one side to a male 1/4 - 18 NPTF on the other, in a straight body.

Answer by: Customer Support on Nov 13, 2025, 1:53 PM

Got a G 3/4 BSPP line on one end and a 1/4 NPT port on the other, this the kind of adapter that bridges those two?

Question by: Billy W on Apr 12, 2025, 9:01 AM

That's what this one does. One end is a male G 3/4-14 BSPP connection and the other is a male 1/4-18 NPTF thread, so it's built specifically to join those two thread standards in a straight-line configuration. Just keep in mind both sides are male, so you'll need female-threaded ports on both ends of whatever you're connecting it to.

Answer by: Customer Support on Apr 14, 2025, 6:31 AM
