Ss F. Din X M. Din Reducer

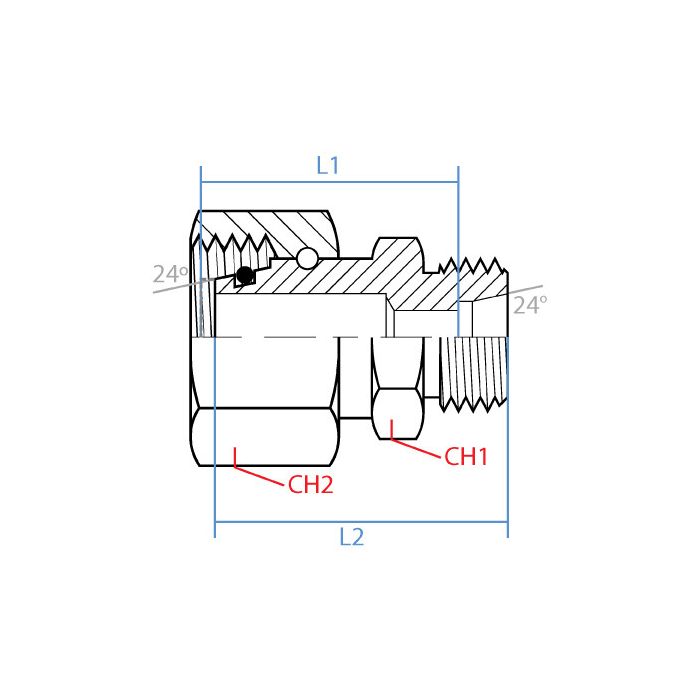

CH1 Width 27mm	CH2 Width 36mm	L1 Length 34mm	L2 Length 39.5mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender F	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5315L-22-15	Product Weight 0.40 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a L22 din tube line to an L15 port, is this the right reducer?

Question by: Floyd J on Oct 9, 2025, 9:36 AM

For converting between those two DIN tube sizes, it matches the common setup: Side 1 is a female DIN tube connection M30 x 2.0 (L22) and Side 2 is a male DIN tube connection M22 x 1.5 (L15). It is a straight stainless reducer, so it is meant to bridge L22 to L15 in-line.

Answer by: Customer Support on Oct 11, 2025, 6:26 AM

Is this here reducer made outta stainless steel? Need somethin' that won't rust up on me quick.

Question by: Neil T on Apr 29, 2025, 8:59 AM

It sure is. Stainless steel construction ensures good corrosion resistance, so it'll hold up well in demanding environments.

Answer by: Customer Support on Apr 30, 2025, 9:42 AM
