Alternate Part NumberC1ES73, Alternate Part Number MI-00319233, Alternate Part Number MINO-00015F65351
Application
Other - Hydraulic, instrumentation, and chemical processing systems
Certifications
ASME|ASA|SAE
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Type 1
SAE ORB
End Type 2
SAE 37
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
got a port with 1-5/16-12 ORB on one side and need to go over to a 37 degree JIC male, is that what this adapter is?
Question by: Wade B on Jun 17, 2025, 10:15 AM

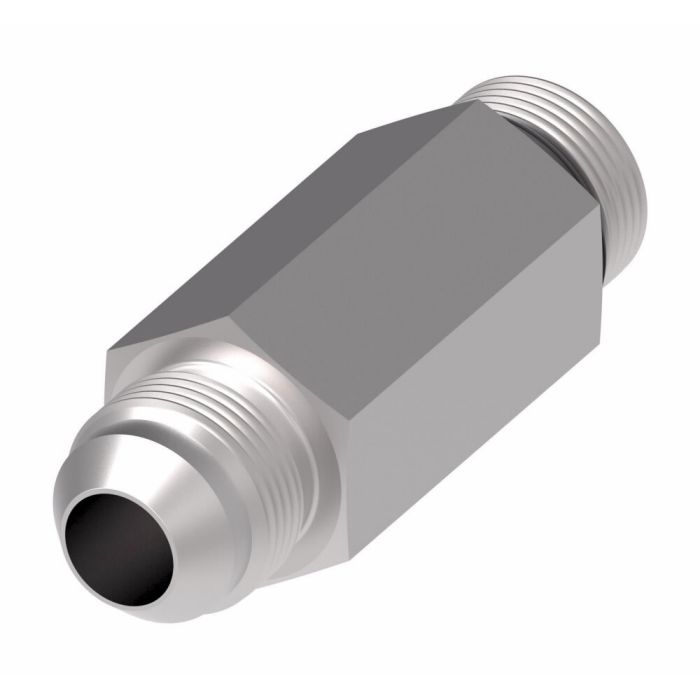

For connecting those two common hydraulic thread styles, this part is a straight adapter with a male SAE ORB end on one side and a male SAE 37 degree (JIC) end on the other.
Answer by: Customer Support on Jun 18, 2025, 1:01 PM
got a hose end that’s 16 male ORB on one side and 16 male JIC on the other. is this the straight adapter for that setup?
Question by: Troy B on Aug 23, 2025, 7:11 AM
For tying those two thread types together in a straight run, this adapter matches SAE O-ring Boss male on one end and SAE 37 degree flare (JIC) male on the other, in size 16 to size 16.
Answer by: Customer Support on Aug 24, 2025, 8:35 AM
does this adapter go from ORB to JIC, or is it the other way around, trying to figure out which end hooks up where before i order
Question by: Lynn S on Jun 14, 2025, 10:16 AM
Both ends are male. One side is SAE O-ring Boss (ORB) and the other is SAE 37 degree flare, which is your standard JIC connection. So you're getting a straight male-to-male adapter that bridges those two fitting types without any inline direction to worry about. Just match each end to its corresponding port or hose fitting and you're set.
Answer by: Customer Support on Jun 15, 2025, 5:14 PM
