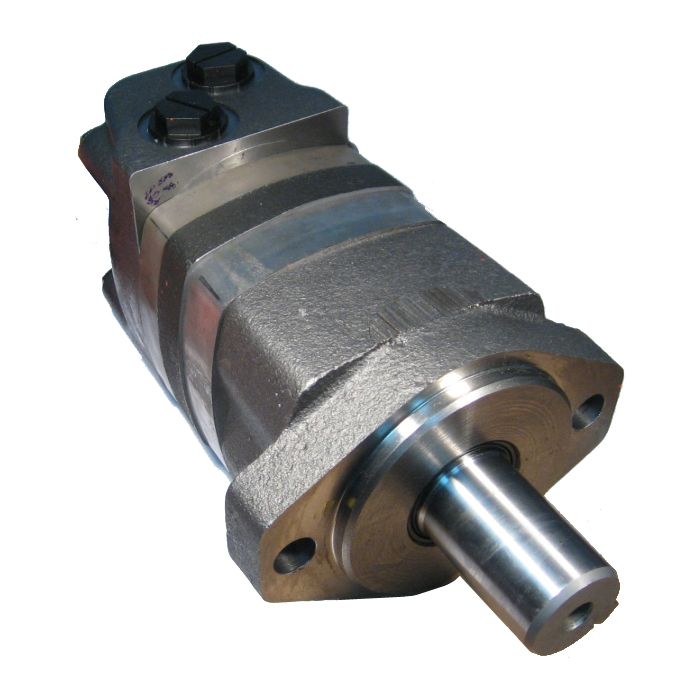

2000 Series Geroler Motors, Up to 8225 lb-in Intermittent Torque, 1042 Intermittent RPM

Fluid Viscosity	Minimum: 70 SUS at operating temperature. Recommended Range: 100-200 SUS.
Maximum Case Pressure	2000 PSI (Without case drain). For continuous back pressure over 2000 PSI, use an external case drain line. Install line so motor case remains full at all times.
Maximum Operating Temperature	180° F.
Recommended Break-In	To assure best motor life, run motor for approximately one hour at 30% of rated pressure before application to full load. Be sure motor is filled with fluid prior to any load applications.
Recommended Filtration	Per ISO Cleanliness Code, level 18/13.
Recommended Fluids	Premium quality, anti-wear type hydraulic fluid.

Products

Model Number	Displacement	Mount	Shaft	Ports	Features
104-1001	4.9	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1002	6.2	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1003	8	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1004	9.6	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1005	11.9	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1006	14.9	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1007	18.7	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1011	9.6	2 Bolt SAE A	1-1/4 in. Tapered	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1022	4.9	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1023	6.2	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1024	8	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1025	9.6	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1026	11.9	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1027	14.9	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1028	18.7	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1029	4.9	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1030	6.2	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1031	8	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1033	11.9	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1034	14.9	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1035	18.7	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1044	24	2 Bolt SAE A	1 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1064	9.6	2 Bolt SAE A	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1065	11.9	2 Bolt SAE A	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1067	18.7	2 Bolt SAE A	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1068	24	2 Bolt SAE A	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1143	24	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1196	9.6	2 Bolt SAE B	1 in. 6B Spline	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1228	24	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1229	24	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1386	8	4 Bolt	32mm Straight Keyed	G 1/2 BSP	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1420	29.8	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1422	29.8	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1671	6.2	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-3371	6.2	4 Bolt Magneto	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-4071	18.7	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
105-1060	24	Wheel Motor	1-1/4 in. Tapered	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
106-1012	11.9	Bearingless	None	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
106-1013	14.9	Bearingless	None	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
106-1014	18.7	Bearingless	None	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
106-1015	24	Bearingless	None	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
