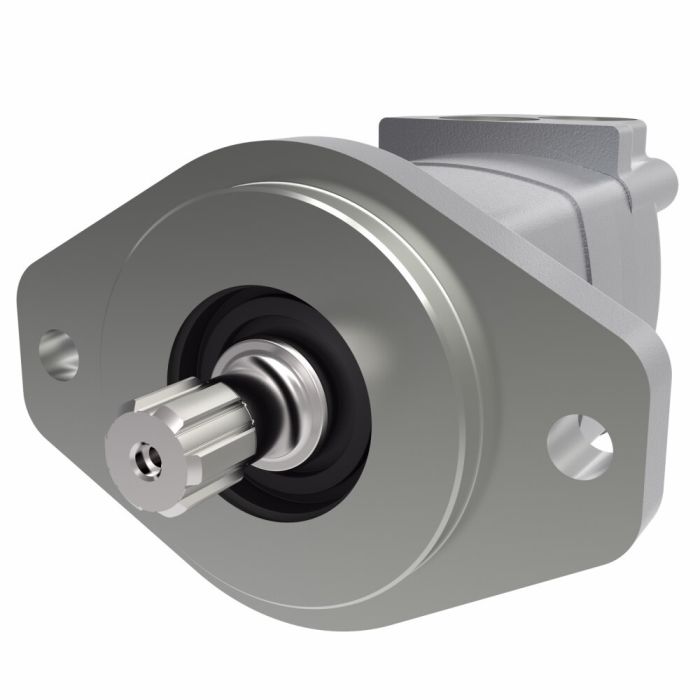

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE B Mounting Flange, 1 in. 6B Spline Shaft, 7/8-14 St.Thd. O-Ring Ports,

Application Swing motor, Brush Cutters & mowers, Harvesting equipment	Design Code 6	Displacement 9.60	Displacement 9.6	Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings	Identification None	Mount 2 Bolt SAE B	Mount 2 Bolt SAE B	Port Type .875-14 UNF-2B SAE O-Ring Ports - Staggered Ports	Ports 7/8-14 St.Thd. O-Ring	Ports 7/8-14 St.Thd. O-Ring	Shaft 1 in. 6B Spline	Shaft 1 in. 6B Spline	Supplier Part Number 104-1196-006	Torque Rating 455 newton metre	Torque Rating 455 newton metre	Valve Options None	Alternate Part Numbers Alternate Part Number 104-1196-006, Alternate Part Number C1MH81	Product Weight 27.00 lbs

Product Questions & Answers 2

Product Questions & Answers

Hey, will this fit where a Char-Lynn C1MH80 motor used to be?

Question by: Hugh T on Jun 1, 2025, 6:11 PM

Application-wise, yes, this 2000 Series motor is often found in swing motors and harvesting equipment. The 2-bolt SAE B mounting flange should line up, but confirm your shaft is a 1" 6B spline.

Answer by: Customer Support on Jun 3, 2025, 7:36 AM

got a swing motor application running about 9.6 cubic inches per rev -- does this unit need a case drain line hooked up or can it run without one?

Question by: Shawn M on Jun 13, 2025, 11:35 AM

Without a case drain, the motor handles up to 2000 PSI of back pressure just fine. Once you're running continuous back pressure above that threshold, you'll need to add an external case drain line. When you do run that line, make sure it's routed so the motor case stays full of fluid at all times. For most swing motor setups staying under 2000 PSI continuously, no drain line is required.

Answer by: Customer Support on Jun 14, 2025, 2:44 PM
