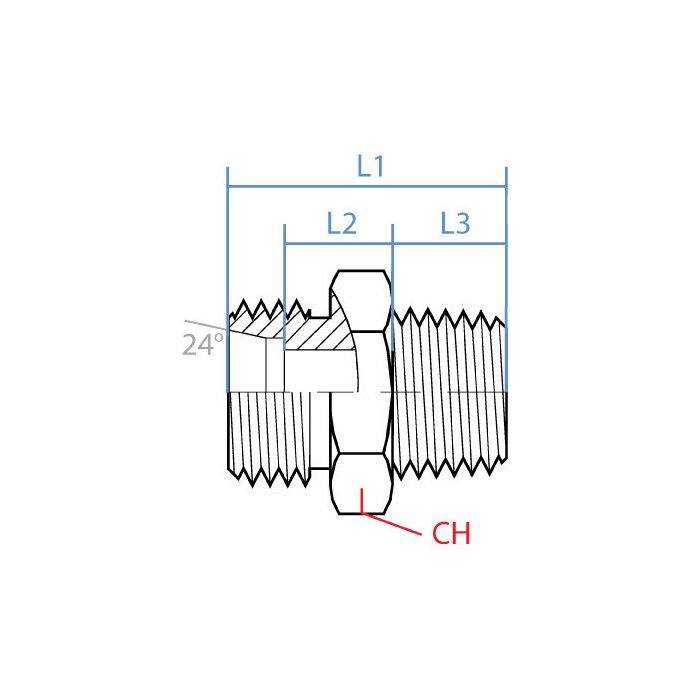

Din X Male Npt

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout 3/8 - 18 NPTF	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5007L-08-06	Product Weight 0.06 lbs

Product Questions & Answers 2

Product Questions & Answers

got a metric DIN tube line with M14 x 1.5 on it, will this adapter mate up to a 3/8-18 NPTF port?

Question by: Ralph M on Jun 6, 2025, 9:01 AM

Built for that exact mix, it has an M14 x 1.5 male DIN tube end (L08) on one side and a 3/8 inch male NPT connection on the other with 3/8-18 NPTF threads.

Answer by: Customer Support on Jun 7, 2025, 8:08 PM

got a DIN tube line coming off a metric component and need to tie into a 3/8 NPT port, this adapter do that straight shot?

Question by: Scott W on Jun 25, 2025, 2:04 PM

That's what it's built for. One end is M14 x 1.5 male DIN tube, the other is 3/8-18 NPTF male. Run the DIN side into your metric tube fitting and thread the NPT end right into your 3/8 NPT port. Steel construction holds up fine in standard hydraulic service, and the straight profile keeps things tidy where you've got a direct line of approach with no need to angle off.

Answer by: Customer Support on Jun 26, 2025, 8:18 PM
