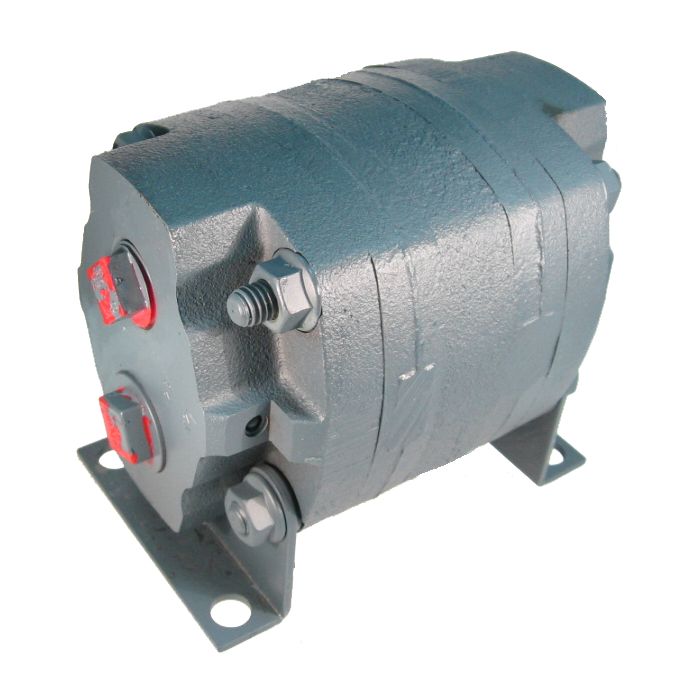

2-Section Geared Flow Dividers With Differential Pressure Relief Valves, Up To 1500 PSI Inlet & 3500 RPM

Application	Equal flow two-section units divide flow from a common pump source into two separate flows of equal proportion. Can be used to synchronize the operation of two cylinders. For greatest efficiency and accuracy, flow dividers should be used at near maximum rated inlet flow. Provide over-pressure protection (relief valves) in each circuit. Do not use Teflon® tape.
Features	High strength permanent mold cast iron housing. Precision needle bearings. Hardened shafts joined by internally hardened round keys and keyways to eliminate stress concentrations and wear. Precise machined trapping relief grooves provide constant filling and discharging to assure quiet operation and maximum bearing life. O-Ring seals between sections. Precision dowel pin alignment between sections.
Recommended Filtration	25 Microns.
Speed Ratings	500 RPM Minimum. 3500 RPM Maximum.

Products

Model Number	Displacement	Inlet Port	Outlet Port	Recommended Minimum Inlet Flow	Recommended Maximum Inlet Flow	Max. Diff. Pressure Between Sections	Maximum Operating Pressure	Maximum Intermittent Pressure	Price	Buy Now
P23	0.702	3/4 NPTF	1/2 NPTF	3	21	1000	1500
P27	1.462	3/4 NPTF	3/4 NPTF	6.4	44	1000	1500
