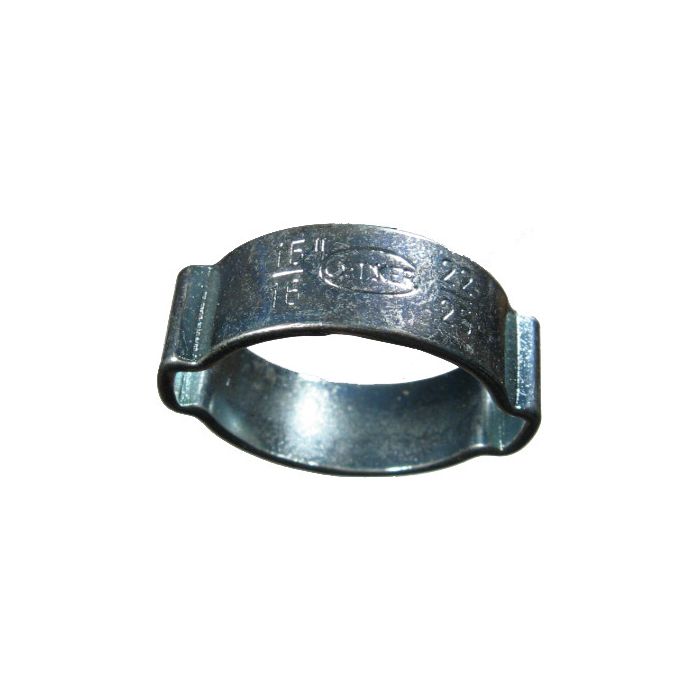

2-Ear Pinch Clamp, Stainless, 0.669 - 0.787 Inch Clamping Range, 0.335 Inch Width

Clamping Range (in)
0.669 - 0.787
Brand
Oetiker Inc.
Brand
Oetiker
Pack Size
1.00
UOM
EA
Materials
Stainless
Nominal Size
0.75
Supplier Part Number
15100010
Product Weight
0.11 lbs
Alternate Part Numbers
Alternate Part Number C1ES49, Alternate Part Number MI-01555283, Alternate Part Number MINO-00691J50970

Product Questions & Answers

got a hose sitting right around 3/4 inch and need to clamp it down good on a fluid line that sees a fair bit of vibration. this clamp gonna hold up to that?
Question by: Chad S on Jun 21, 2025, 3:06 PM
Vibration is actually one of the conditions this type of clamp was built around. The 2-ear pinch design from Oetiker creates a spring-like tension in the clamp body when installed correctly, which lets it absorb movement and pressure without loosening over time. The clamping range runs from 0.669 to 0.787 inches, so as long as your hose outside diameter lands in that window, you should get a solid, reliable seal on fluid lines in high-vibration environments.
Answer by: Customer Support on Jun 23, 2025, 6:30 AM
What size is this clamp supposed to be?
Question by: Lee W on Apr 24, 2025, 11:47 AM
This clamp is listed as having a nominal size of 0.75 inches.
Answer by: Customer Support on Apr 26, 2025, 7:53 AM

Similar Products

Model Number Materials Nominal Size Clamping Range (in) Width (in) Price Buy Now
10100008 Zinc Plated Steel 0.3125 0.276 - 0.354 0.276
10100011 Zinc Plated Steel 0.375 0.315 - 0.433 0.276
10100016 Zinc Plated Steel 0.5 0.433 - 0.512 0.276
10100019 Zinc Plated Steel 0.5625 0.512 - 0.592 0.295
10100024 Zinc Plated Steel 0.625 0.591 - 0.708 0.315
10100027 Zinc Plated Steel 0.75 0.669 - 0.787 0.335
10100030 Zinc Plated Steel 0.875 0.787 - 0.905 0.354
10100032 Zinc Plated Steel 0.9375 0.866 - 0.984 0.394
15100007 Stainless 0.5625 0.512 - 0.592 0.295
15100009 Stainless 0.625 0.591 - 0.708 0.315
15100010 Stainless 0.75 0.669 - 0.787 0.335
15100012 Stainless 0.875 0.787 - 0.905 0.354
15100023 Stainless 0.375 0.315 - 0.433 0.276
