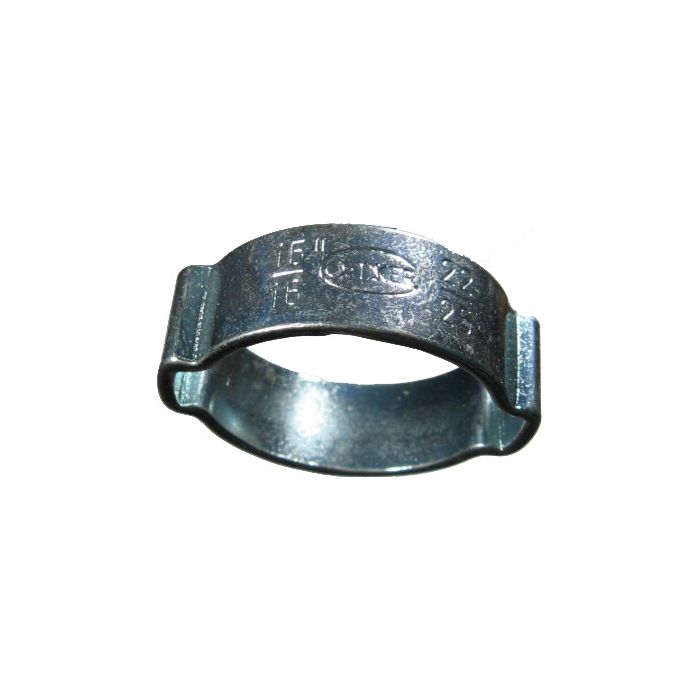

2-Ear Pinch Clamp, Stainless, 0.591 - 0.708 Inch Clamping Range, 0.315 Inch Width

Clamping Range (in)
0.591 - 0.708
Brand
Oetiker Inc.
Brand
Oetiker
Pack Size
1.00
UOM
EA
Materials
Stainless
Nominal Size
0.63
Supplier Part Number
15100009
Product Weight
0.01 lbs
Alternate Part Numbers
Alternate Part Number C1ES48, Alternate Part Number MI-01555282, Alternate Part Number MINO-00691J50969

Product Questions & Answers

got a hose sitting right at 0.650 inches outside diameter, this clamp gonna close up proper on that or is it borderline?
Question by: Frank D on May 12, 2025, 9:45 PM
Right in the middle of the clamping range, so you're in good shape. The clamp runs from 0.591 to 0.708 inches, and 0.650 sits comfortably in there. One thing worth knowing on the install side: close the first ear all the way down before touching the second one. That sequence is what gives the clamp its spring-like holding action. If you close both ears completely flat, that usually means the clamp is running too big for the hose and you'd want to step down to the next size.
Answer by: Customer Support on May 14, 2025, 6:26 AM

Similar Products

Model Number Materials Nominal Size Clamping Range (in) Width (in) Price Buy Now
10100008 Zinc Plated Steel 0.3125 0.276 - 0.354 0.276
10100011 Zinc Plated Steel 0.375 0.315 - 0.433 0.276
10100016 Zinc Plated Steel 0.5 0.433 - 0.512 0.276
10100019 Zinc Plated Steel 0.5625 0.512 - 0.592 0.295
10100024 Zinc Plated Steel 0.625 0.591 - 0.708 0.315
10100027 Zinc Plated Steel 0.75 0.669 - 0.787 0.335
10100030 Zinc Plated Steel 0.875 0.787 - 0.905 0.354
10100032 Zinc Plated Steel 0.9375 0.866 - 0.984 0.394
15100007 Stainless 0.5625 0.512 - 0.592 0.295
15100009 Stainless 0.625 0.591 - 0.708 0.315
15100010 Stainless 0.75 0.669 - 0.787 0.335
15100012 Stainless 0.875 0.787 - 0.905 0.354
15100023 Stainless 0.375 0.315 - 0.433 0.276
