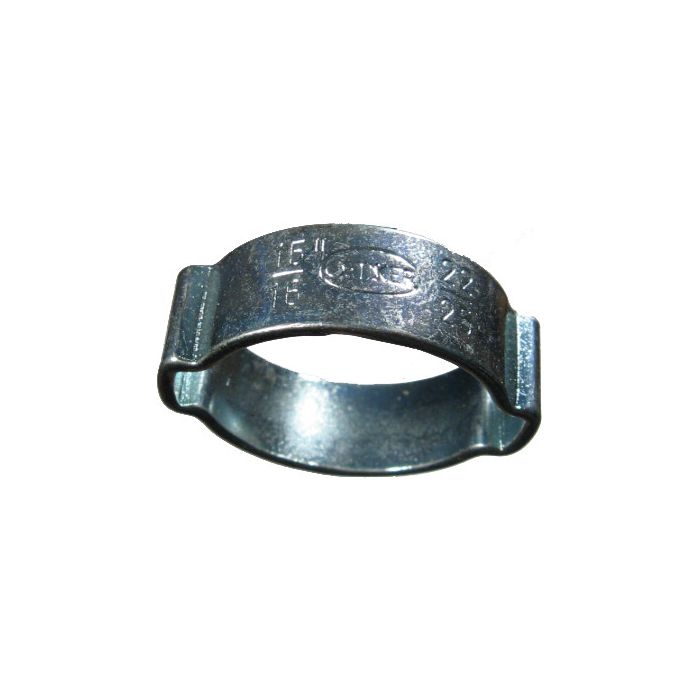

2-Ear Pinch Clamp, Stainless, 0.512 - 0.592 Inch Clamping Range, 0.295 Inch Width

Clamping Range (in)
0.512 - 0.592
Brand
Oetiker Inc.
Brand
Oetiker
Pack Size
1.00
UOM
EA
Materials
Stainless
Nominal Size
0.56
Supplier Part Number
15100007
Product Weight
0.01 lbs
Alternate Part Numbers
Alternate Part Number C1ES47, Alternate Part Number MI-01555280, Alternate Part Number MINO-00691J50967

Product Questions & Answers

got a hose sitting right at about .55 inches diameter, this clamp gonna get a solid grip on that or is it too close to the middle of the range to matter?
Question by: Stan W on Nov 2, 2025, 5:59 PM
Right in the sweet spot, actually. The clamping range on this one runs from 0.512 to 0.592 inches, so 0.55 puts you near the middle with room on both sides. That's generally where you get the most consistent compression. One thing worth knowing on installation, close the first ear all the way down before you touch the second one. Then bring the second ear in until the first opens back up just a hair, roughly a sixteenth of an inch. That spring-like tension is what keeps it locked down against pressure swings and vibration over time.
Answer by: Customer Support on Nov 4, 2025, 8:38 AM

Similar Products

Model Number Materials Nominal Size Clamping Range (in) Width (in) Price Buy Now
10100008 Zinc Plated Steel 0.3125 0.276 - 0.354 0.276
10100011 Zinc Plated Steel 0.375 0.315 - 0.433 0.276
10100016 Zinc Plated Steel 0.5 0.433 - 0.512 0.276
10100019 Zinc Plated Steel 0.5625 0.512 - 0.592 0.295
10100024 Zinc Plated Steel 0.625 0.591 - 0.708 0.315
10100027 Zinc Plated Steel 0.75 0.669 - 0.787 0.335
10100030 Zinc Plated Steel 0.875 0.787 - 0.905 0.354
10100032 Zinc Plated Steel 0.9375 0.866 - 0.984 0.394
15100007 Stainless 0.5625 0.512 - 0.592 0.295
15100009 Stainless 0.625 0.591 - 0.708 0.315
15100010 Stainless 0.75 0.669 - 0.787 0.335
15100012 Stainless 0.875 0.787 - 0.905 0.354
15100023 Stainless 0.375 0.315 - 0.433 0.276
