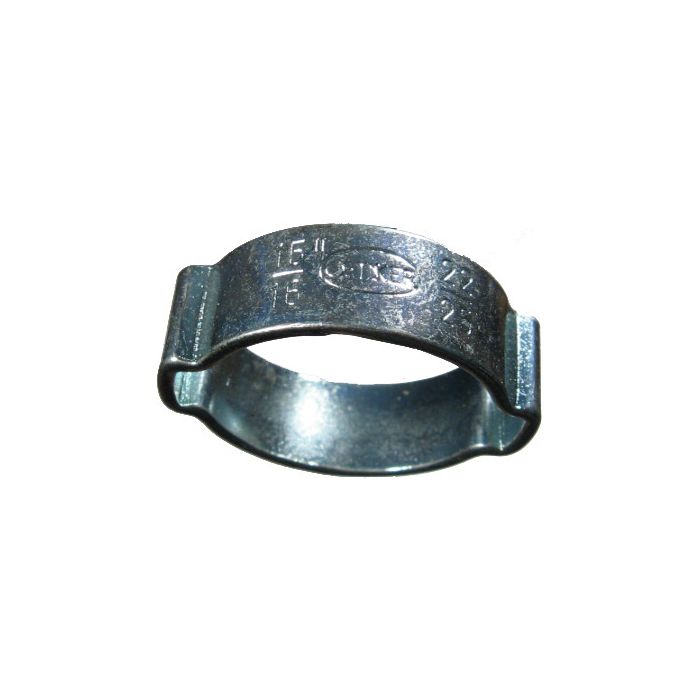

2-Ear Pinch Clamp, Zinc Plated Steel, 0.866 - 0.984 Inch Clamping Range, 0.394 Inch Width

Clamping Range (in) 0.866 - 0.984	Brand Oetiker Inc.	Brand Oetiker	Pack Size 1.00	UOM EA	Materials Zinc Plated Steel	Nominal Size 0.94	Supplier Part Number 10100032	Product Weight 0.04 lbs	Alternate Part Numbers Alternate Part Number C1ZZ52, Alternate Part Number MI-01545283, Alternate Part Number MINO-00691F87199

Product Questions & Answers 2

Product Questions & Answers

got a hose that measures right around 15/16 inch on the outside. is this clamp in the ballpark or am i gonna be fighting it

Question by: Rick P on Apr 16, 2025, 6:34 PM

You want the hose outside diameter to land in the clamp’s clamping range of 0.866 to 0.984 inch. A 15/16 inch OD is 0.9375 inch, which sits right in that range and matches the nominal size listed, so it should be a good match.

Answer by: Customer Support on Apr 18, 2025, 6:50 AM

What kinda lines would you use this clamp on? Just tryin' to figure out if it's right for what I need.

Question by: Harold M on Mar 24, 2025, 6:04 PM

These clamps are especially suited for industrial use and work well with heavy vibrating equipment. You can use them on air, fluid, gas and steam lines.

Answer by: Customer Support on Mar 26, 2025, 6:01 AM

Similar Products

Model Number	Materials	Nominal Size	Clamping Range (in)	Width (in)
10100008	Zinc Plated Steel	0.3125	0.276 - 0.354	0.276
10100011	Zinc Plated Steel	0.375	0.315 - 0.433	0.276
10100016	Zinc Plated Steel	0.5	0.433 - 0.512	0.276
10100019	Zinc Plated Steel	0.5625	0.512 - 0.592	0.295
10100024	Zinc Plated Steel	0.625	0.591 - 0.708	0.315
10100027	Zinc Plated Steel	0.75	0.669 - 0.787	0.335
10100030	Zinc Plated Steel	0.875	0.787 - 0.905	0.354
10100032	Zinc Plated Steel	0.9375	0.866 - 0.984	0.394
15100007	Stainless	0.5625	0.512 - 0.592	0.295
15100009	Stainless	0.625	0.591 - 0.708	0.315
15100010	Stainless	0.75	0.669 - 0.787	0.335
15100012	Stainless	0.875	0.787 - 0.905	0.354
15100023	Stainless	0.375	0.315 - 0.433	0.276
