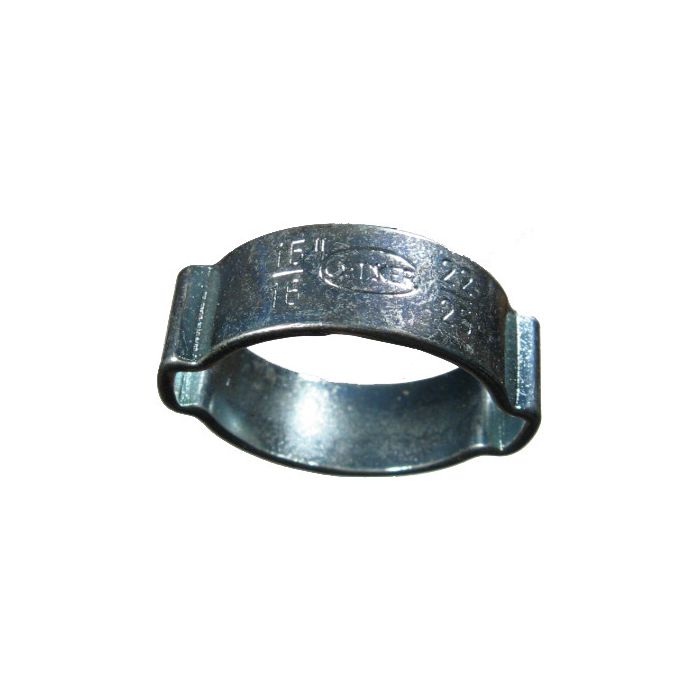

2-Ear Pinch Clamp, Zinc Plated Steel, 0.787 - 0.905 Inch Clamping Range, 0.354 Inch Width

Clamping Range (in)
0.787 - 0.905
Brand
Oetiker Inc.
Brand
Oetiker
Pack Size
1.00
UOM
EA
Materials
Zinc Plated Steel
Nominal Size
0.88
Supplier Part Number
10100030
Product Weight
0.05 lbs
Alternate Part Numbers
Alternate Part Number C1ZZ53, Alternate Part Number MI-01545270, Alternate Part Number MINO-00691F87198

Product Questions & Answers

got a hose that measures right around 7/8 on the outside, is this clamp gonna fit it or am i pushing it
Question by: Danny W on Apr 10, 2025, 2:09 PM
You want the hose OD to land inside the clamp’s 0.787 to 0.905 inch clamping range. A hose that is about 7/8 inch, or 0.875, sits right in the middle of that range, so it’s the right size window for it.
Answer by: Customer Support on Apr 12, 2025, 6:46 AM
how do you actually install one of these right, do both ears get closed at the same time?
Question by: Tammy C on Feb 22, 2026, 6:36 PM
Close the first ear all the way down before you touch the second one. Once that first ear is fully closed, then close the second ear just enough so the first ear opens back up a little, roughly a 1/16 inch gap. That slight opening builds tension into the clamp, kind of like a spring, so it holds firm against pressure, vibration, and any hose shrinkage that happens over time from heat or aging.
Answer by: Customer Support on Feb 24, 2026, 12:32 PM
Can you use these pinch clamps on fuel lines?
Question by: Warren S on Oct 26, 2025, 10:30 AM
These Oetiker 2-ear clamps are indeed used for securing lines carrying fluids, including fuel, as well as air, gas, and steam in industrial settings.
Answer by: Customer Support on Oct 27, 2025, 12:43 PM

Similar Products

Model Number Materials Nominal Size Clamping Range (in) Width (in) Price Buy Now
10100008 Zinc Plated Steel 0.3125 0.276 - 0.354 0.276
10100011 Zinc Plated Steel 0.375 0.315 - 0.433 0.276
10100016 Zinc Plated Steel 0.5 0.433 - 0.512 0.276
10100019 Zinc Plated Steel 0.5625 0.512 - 0.592 0.295
10100024 Zinc Plated Steel 0.625 0.591 - 0.708 0.315
10100027 Zinc Plated Steel 0.75 0.669 - 0.787 0.335
10100030 Zinc Plated Steel 0.875 0.787 - 0.905 0.354
10100032 Zinc Plated Steel 0.9375 0.866 - 0.984 0.394
15100007 Stainless 0.5625 0.512 - 0.592 0.295
15100009 Stainless 0.625 0.591 - 0.708 0.315
15100010 Stainless 0.75 0.669 - 0.787 0.335
15100012 Stainless 0.875 0.787 - 0.905 0.354
15100023 Stainless 0.375 0.315 - 0.433 0.276
