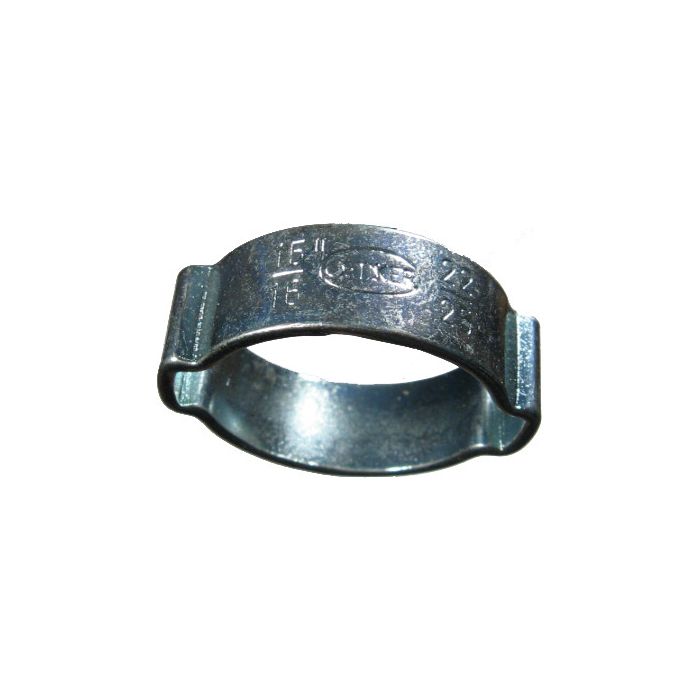

2-Ear Pinch Clamp, Zinc Plated Steel, 0.669 - 0.787 Inch Clamping Range, 0.335 Inch Width

Clamping Range (in)
0.669 - 0.787
Brand
Oetiker Inc.
Brand
Oetiker
Pack Size
1.00
UOM
EA
Materials
Zinc Plated Steel
Nominal Size
0.75
Supplier Part Number
10100027
Product Weight
0.01 lbs
Alternate Part Numbers
Alternate Part Number C1ZZ54, Alternate Part Number MI-01545259, Alternate Part Number MINO-00691F87196

Product Questions & Answers

these go on 3/4 inch hose lines, right? trying to figure out if the nominal size matches up to what i got in the shop
Question by: Dwayne H on Dec 14, 2025, 8:37 PM
Nominal size on this clamp is 0.75 inches, and the actual clamping range runs from 0.669 to 0.787 inches. So as long as your hose outside diameter falls somewhere in that window once it's seated on the fitting, you're in good shape. If you're right at the edge of that range, size down rather than up. Oetiker's own installation guidance says if both ears close all the way flat, the clamp is probably too big and you should move to the next smaller size.
Answer by: Customer Support on Dec 16, 2025, 6:36 AM
got a hose that measures right around 3/4 inch, is this clamp gonna fit or am i flirting with the wrong size
Question by: Cody B on Oct 9, 2025, 8:38 PM
Go by the clamping range, not just the nominal size. This one clamps from 0.669 to 0.787 inch, with a nominal size of 0.75 inch, so it’s meant to land right in that neighborhood as long as your hose and fitting OD fall inside that range.
Answer by: Customer Support on Oct 11, 2025, 7:18 AM
What size range of hose will this clamp work with?
Question by: Ross C on Aug 30, 2025, 7:14 AM
These clamps are designed to fit hoses with an outer diameter between 0.669 and 0.787 inches.
Answer by: Customer Support on Aug 31, 2025, 4:13 PM

Similar Products

Model Number Materials Nominal Size Clamping Range (in) Width (in) Price Buy Now
10100008 Zinc Plated Steel 0.3125 0.276 - 0.354 0.276
10100011 Zinc Plated Steel 0.375 0.315 - 0.433 0.276
10100016 Zinc Plated Steel 0.5 0.433 - 0.512 0.276
10100019 Zinc Plated Steel 0.5625 0.512 - 0.592 0.295
10100024 Zinc Plated Steel 0.625 0.591 - 0.708 0.315
10100027 Zinc Plated Steel 0.75 0.669 - 0.787 0.335
10100030 Zinc Plated Steel 0.875 0.787 - 0.905 0.354
10100032 Zinc Plated Steel 0.9375 0.866 - 0.984 0.394
15100007 Stainless 0.5625 0.512 - 0.592 0.295
15100009 Stainless 0.625 0.591 - 0.708 0.315
15100010 Stainless 0.75 0.669 - 0.787 0.335
15100012 Stainless 0.875 0.787 - 0.905 0.354
15100023 Stainless 0.375 0.315 - 0.433 0.276
