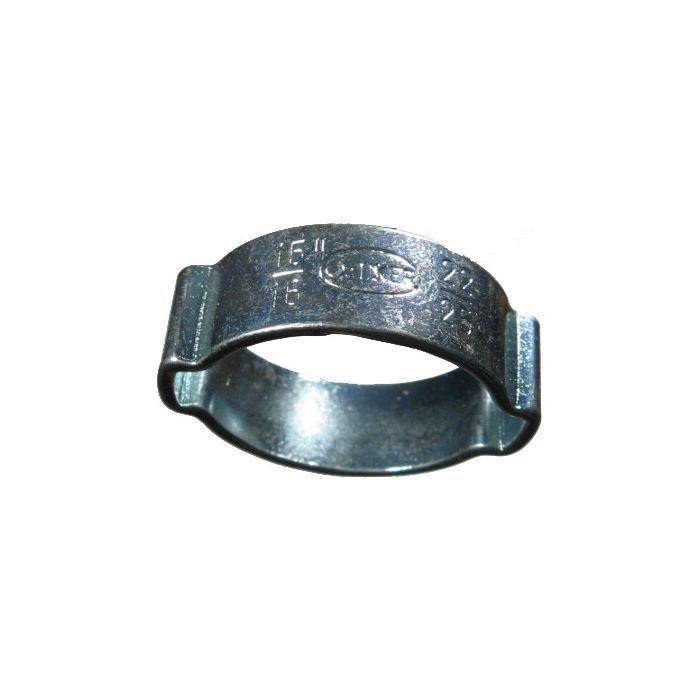

2-Ear Pinch Clamp, Zinc Plated Steel, 0.433 - 0.512 Inch Clamping Range, 0.276 Inch Width

Clamping Range (in)
0.433 - 0.512
Brand
Oetiker Inc.
Brand
Oetiker
Pack Size
1.00
UOM
EA
Materials
Zinc Plated Steel
Nominal Size
0.50
Supplier Part Number
10100016
Product Weight
0.01 lbs
Alternate Part Numbers
Alternate Part Number C1ZZ57, Alternate Part Number MI-01545225, Alternate Part Number MINO-00691F87192

Product Questions & Answers

Got a half-inch hose fitting I need to clamp down on an air line that sees a good bit of vibration. Will this clamp hold up to that kind of punishment?
Question by: Cindy B on Feb 15, 2026, 3:32 PM
Zinc-plated steel construction and the two-ear pinch design make this clamp well-suited for exactly that kind of application. The way these work, you close the first ear all the way, then bring the second ear down until the first opens back up just slightly, about a 1/16 inch gap. That sequence builds a spring-like tension into the clamp so it stays tight even as vibration cycles and the hose material shifts over time. Oetiker specifically calls out heavy vibrating equipment as one of the primary use cases for this design, so you're in good shape there.
Answer by: Customer Support on Feb 17, 2026, 10:14 AM

Similar Products

Model Number Materials Nominal Size Clamping Range (in) Width (in) Price Buy Now
10100008 Zinc Plated Steel 0.3125 0.276 - 0.354 0.276
10100011 Zinc Plated Steel 0.375 0.315 - 0.433 0.276
10100016 Zinc Plated Steel 0.5 0.433 - 0.512 0.276
10100019 Zinc Plated Steel 0.5625 0.512 - 0.592 0.295
10100024 Zinc Plated Steel 0.625 0.591 - 0.708 0.315
10100027 Zinc Plated Steel 0.75 0.669 - 0.787 0.335
10100030 Zinc Plated Steel 0.875 0.787 - 0.905 0.354
10100032 Zinc Plated Steel 0.9375 0.866 - 0.984 0.394
15100007 Stainless 0.5625 0.512 - 0.592 0.295
15100009 Stainless 0.625 0.591 - 0.708 0.315
15100010 Stainless 0.75 0.669 - 0.787 0.335
15100012 Stainless 0.875 0.787 - 0.905 0.354
15100023 Stainless 0.375 0.315 - 0.433 0.276
