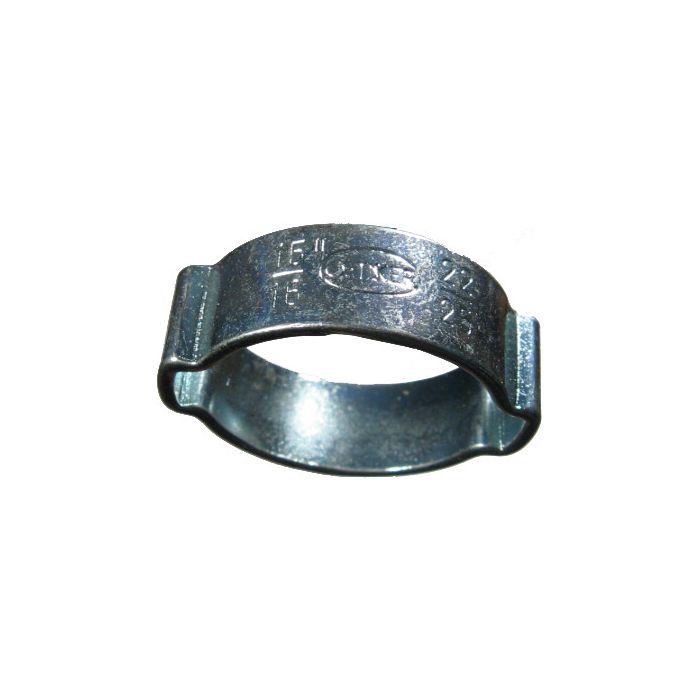

2-Ear Pinch Clamp, Zinc Plated Steel, 0.315 - 0.433 Inch Clamping Range, 0.276 Inch Width

Clamping Range (in)
0.315 - 0.433
Brand
Oetiker Inc.
Brand
Oetiker
Pack Size
1.00
UOM
EA
Materials
Zinc Plated Steel
Nominal Size
0.38
Supplier Part Number
10100011
Product Weight
0.03 lbs
Alternate Part Numbers
Alternate Part Number C1ZZ58, Alternate Part Number MI-01555253, Alternate Part Number MINO-00691J50940

Product Questions & Answers

got a hose that measures right around 3/8, is this clamp gonna fit or am i pushing it?
Question by: Bobby B on Apr 10, 2025, 12:47 PM
Go by the clamping range, not the “3/8” nickname. This one clamps from 0.315 to 0.433 inch, so it works as long as your hose outside diameter where the clamp sits falls in that window.
Answer by: Customer Support on Apr 12, 2025, 8:47 AM
Will these clamps hold up okay on steam lines, or should I be looking at something else?
Question by: Tammy W on May 28, 2025, 7:10 PM
These Oetiker 2-ear clamps are indeed suited for steam lines, as well as air, fluid, and gas lines, especially in industrial settings where there's a lot of vibration. The zinc plated steel construction provides good corrosion resistance for those applications.
Answer by: Customer Support on May 30, 2025, 3:02 PM
what's the right way to install one of these 2-ear clamps? i always just squeeze both ears down at the same time but somebody told me that's not how you're supposed to do it
Question by: Warren B on Jan 22, 2026, 9:55 PM
Your coworker's right on that one. Close the first ear all the way, then work the second ear down until the first ear opens back up just a little, roughly 1/16 of an inch. That slight gap is what gives the clamp its holding strength. It creates a spring-like tension that helps the clamp resist pressure, vibration, and hose shrinkage over time. If you close both ears completely flat, you've likely got too big a clamp for the job and should move down to the next smaller size.
Answer by: Customer Support on Jan 24, 2026, 9:28 PM

Similar Products

Model Number Materials Nominal Size Clamping Range (in) Width (in) Price Buy Now
10100008 Zinc Plated Steel 0.3125 0.276 - 0.354 0.276
10100011 Zinc Plated Steel 0.375 0.315 - 0.433 0.276
10100016 Zinc Plated Steel 0.5 0.433 - 0.512 0.276
10100019 Zinc Plated Steel 0.5625 0.512 - 0.592 0.295
10100024 Zinc Plated Steel 0.625 0.591 - 0.708 0.315
10100027 Zinc Plated Steel 0.75 0.669 - 0.787 0.335
10100030 Zinc Plated Steel 0.875 0.787 - 0.905 0.354
10100032 Zinc Plated Steel 0.9375 0.866 - 0.984 0.394
15100007 Stainless 0.5625 0.512 - 0.592 0.295
15100009 Stainless 0.625 0.591 - 0.708 0.315
15100010 Stainless 0.75 0.669 - 0.787 0.335
15100012 Stainless 0.875 0.787 - 0.905 0.354
15100023 Stainless 0.375 0.315 - 0.433 0.276
