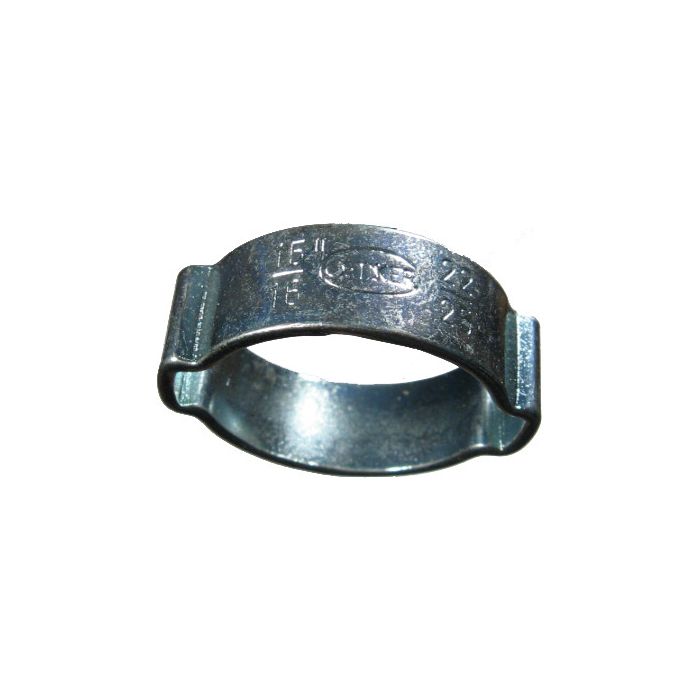

2-Ear Pinch Clamp, Zinc Plated Steel, 0.276 - 0.354 Inch Clamping Range, 0.276 Inch Width

Clamping Range (in)
0.276 - 0.354
Brand
Oetiker Inc.
Brand
Oetiker
Pack Size
1.00
UOM
EA
Materials
Zinc Plated Steel
Nominal Size
0.31
Supplier Part Number
10100008
Product Weight
0.02 lbs
Alternate Part Numbers
Alternate Part Number C1ZZ59, Alternate Part Number MI-01545200, Alternate Part Number MINO-00691F87189

Product Questions & Answers

got a hose sitting right at about 5/16 inch diameter -- will this clamp actually get a solid grip on something that size, or do i need to size up?
Question by: Melvin C on Jul 6, 2025, 3:01 PM
At 5/16 inch nominal size, that hose falls right in the middle of the 0.276 to 0.354 inch clamping range, so you're in good shape. The sweet spot with these Oetiker 2-ear clamps is having enough material to work with so the second ear doesn't fully close out. When you install it, close the first ear all the way down, then bring the second ear in until the first one opens back up just a hair, roughly 1/16 inch gap. That spring-like tension is what gives you a secure, tamper-proof hold against pressure and vibration over time.
Answer by: Customer Support on Jul 8, 2025, 11:38 AM
i’ve got a hose that measures right around 5/16. is this clamp gonna fit it or am i gonna be fighting it
Question by: Floyd C on Sep 11, 2025, 2:21 PM
Fit comes down to the clamping range, and this one covers 0.276 to 0.354 inch. It is also listed as a 5/16 nominal size, so a hose that lands in that range is what it is meant to clamp.
Answer by: Customer Support on Sep 13, 2025, 11:56 AM
What's the best way to install these ear clamps? I wanna make sure I do it right the first time.
Question by: Brent R on Dec 24, 2025, 7:18 PM
For best results, close one ear completely before adjusting the second ear. This allows the first ear to open slightly, which builds a resilient, spring-like action. If both ears close all the way without resistance, you might need a slightly smaller clamp size for the best fit.
Answer by: Customer Support on Dec 26, 2025, 1:19 PM

Similar Products

Model Number Materials Nominal Size Clamping Range (in) Width (in) Price Buy Now
10100008 Zinc Plated Steel 0.3125 0.276 - 0.354 0.276
10100011 Zinc Plated Steel 0.375 0.315 - 0.433 0.276
10100016 Zinc Plated Steel 0.5 0.433 - 0.512 0.276
10100019 Zinc Plated Steel 0.5625 0.512 - 0.592 0.295
10100024 Zinc Plated Steel 0.625 0.591 - 0.708 0.315
10100027 Zinc Plated Steel 0.75 0.669 - 0.787 0.335
10100030 Zinc Plated Steel 0.875 0.787 - 0.905 0.354
10100032 Zinc Plated Steel 0.9375 0.866 - 0.984 0.394
15100007 Stainless 0.5625 0.512 - 0.592 0.295
15100009 Stainless 0.625 0.591 - 0.708 0.315
15100010 Stainless 0.75 0.669 - 0.787 0.335
15100012 Stainless 0.875 0.787 - 0.905 0.354
15100023 Stainless 0.375 0.315 - 0.433 0.276
