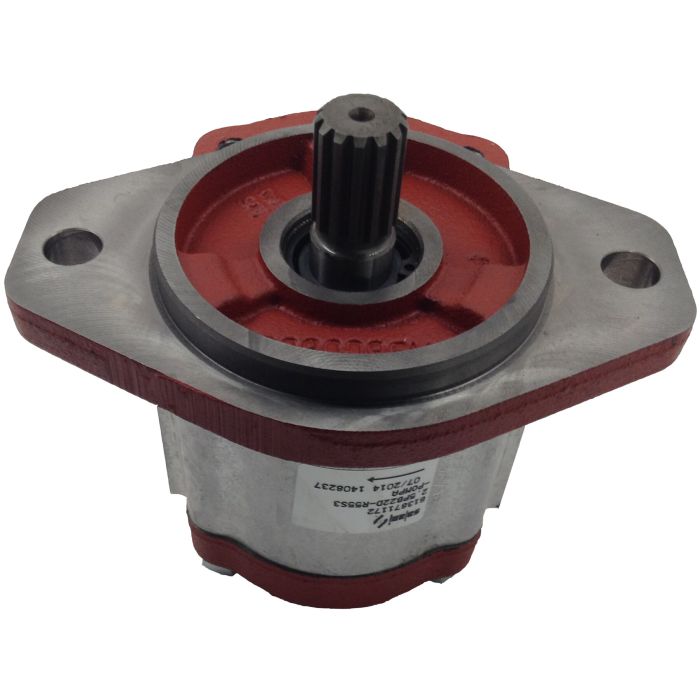

2.5PB Series Aluminum Gear Pump, 1.53 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 13T Splined SAE B Shaft, SAE -16 Side Inlet, SAE -12 Side Outlet, CW Rotation

Displacement 1.53	Displacement 1.53	Brand Salami Hydraulics Na Inc	Brand Salami S.P.A	Pack Size 1.00	UOM EA	Mount 2-Bolt SAE B	Mount 2-Bolt SAE B	Ports SAE -16 Side Inlet, SAE -12 Side Outlet	Ports SAE -16 Side Inlet, SAE -12 Side Outlet	Pressure Rating 3600	Rated Flow 11.80	Rated Flow 11.8	Rotation CW	Shaft 7/8 13T Splined SAE B	Shaft 7/8 13T Splined SAE B	Speed Rating 3000 RPM	Speed Rating 3000 RPM	Supplier Part Number 613873722	Alternate Part Numbers Alternate Part Number 2.5PB25D-R55S3 PUMP, Alternate Part Number C1MR66	Product Weight 9.02 lbs

Product Questions & Answers

Will this gear pump bolt right up to a standard SAE B mount?

Question by: Hubert S on Mar 29, 2025, 1:49 PM

it's got a 2-bolt SAE B mounting flange, so it should fit any standard SAE B mount you've got.

Answer by: Customer Support on Mar 31, 2025, 8:22 AM

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Pressure Rating	Speed Rating
613871192	1.68	13	2-Bolt SAE B	7/8 13T Splined SAE B	SAE -16 Side Inlet, SAE -12 Side Outlet	CW	3600	3000 RPM
613871202	1.97	15.3	2-Bolt SAE B	7/8 13T Splined SAE B	SAE -16 Side Inlet, SAE -12 Side Outlet	CW	3300	3000 RPM
613871252	1.35	10.5	2-Bolt SAE B	7/8 Straight Keyed SAE B	SAE -12 Side Inlet, SAE -10 Side Outlet	CW	3600	3000 RPM
613871282	1.97	15.3	2-Bolt SAE B	7/8 Straight Keyed SAE B	SAE -16 Side Inlet, SAE -12 Side Outlet	CW	3300	3000 RPM
613873722	1.53	11.8	2-Bolt SAE B	7/8 13T Splined SAE B	SAE -16 Side Inlet, SAE -12 Side Outlet	CW	3600	3000 RPM
613873732	1.53	11.8	2-Bolt SAE B	7/8 Straight Keyed SAE B	SAE -16 Side Inlet, SAE -12 Side Outlet	CW	3600	3000 RPM
613873922	1.17	9.1	2-Bolt SAE B	7/8 13T Splined SAE B	SAE -12 Side Inlet, SAE -10 Side Outlet	CW	3600	3000 RPM
