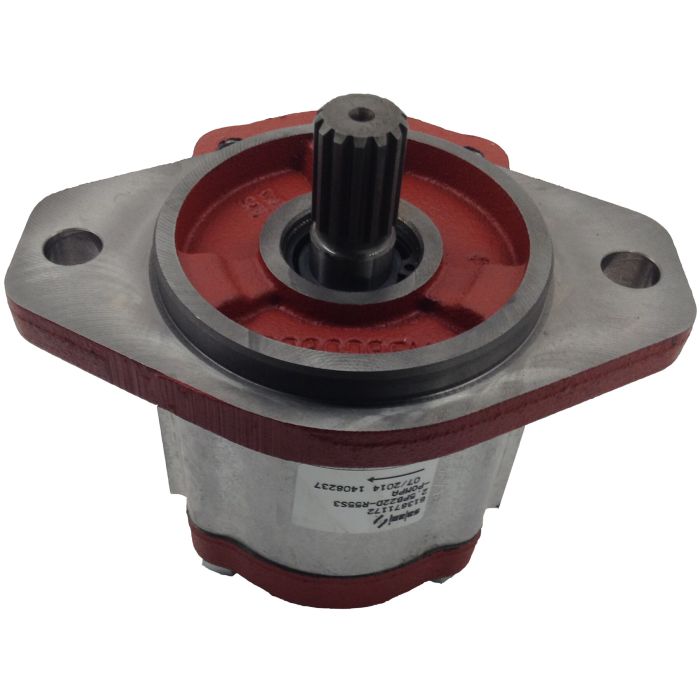

2.5PB Series Aluminum Gear Pump, 1.97 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed SAE B Shaft, SAE -16 Side Inlet, SAE -12 Side Outlet, CW Rotation

Ask A Question
Displacement
1.97
Displacement
1.97
Brand
Salami Hydraulics Na Inc
Brand
Salami Hydraulics
Pack Size
1.00
UOM
EA
Mount
2-Bolt SAE B
Mount
2-Bolt SAE B
Ports
SAE -16 Side Inlet, SAE -12 Side Outlet
Ports
SAE -16 Side Inlet, SAE -12 Side Outlet
Pressure Rating
3300
Rated Flow
15.30
Rated Flow
15.3
Rotation
CW
Shaft
7/8 Straight Keyed SAE B
Shaft
7/8 Straight Keyed SAE B
Speed Rating
3000 RPM
Speed Rating
3000 RPM
Supplier Part Number
613871282
Alternate Part Numbers
Alternate Part Number 2.5PB32D-R87S3 PUMP, Alternate Part Number C1MR63
Product Weight
10.47 lbs
Product Questions & Answers 2

Product Questions & Answers

What size are the inlet and outlet ports on this thing?
Question by: Marvin O on Nov 28, 2025, 6:51 PM
This pump uses SAE -16 side inlets and SAE -12 side outlet ports.
Answer by: Customer Support on Nov 30, 2025, 8:13 AM
pump says CW rotation but i need it to run counterclockwise, is that something that can be done or am i looking at the wrong unit?
Question by: Earl B on Dec 14, 2025, 10:30 AM
Rotation on this pump can be reversed by repositioning the drive shaft and driven shaft and rotating the front flange. So if you need CCW, you're not stuck buying a different model. It's a field-adjustable change, not a factory-only modification.
Answer by: Customer Support on Dec 15, 2025, 10:49 AM

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Pressure Rating Speed Rating Price Buy Now
613871192 1.68 13 2-Bolt SAE B 7/8 13T Splined SAE B SAE -16 Side Inlet, SAE -12 Side Outlet CW 3600 3000 RPM
613871202 1.97 15.3 2-Bolt SAE B 7/8 13T Splined SAE B SAE -16 Side Inlet, SAE -12 Side Outlet CW 3300 3000 RPM
613871252 1.35 10.5 2-Bolt SAE B 7/8 Straight Keyed SAE B SAE -12 Side Inlet, SAE -10 Side Outlet CW 3600 3000 RPM
613871282 1.97 15.3 2-Bolt SAE B 7/8 Straight Keyed SAE B SAE -16 Side Inlet, SAE -12 Side Outlet CW 3300 3000 RPM
613873722 1.53 11.8 2-Bolt SAE B 7/8 13T Splined SAE B SAE -16 Side Inlet, SAE -12 Side Outlet CW 3600 3000 RPM
613873732 1.53 11.8 2-Bolt SAE B 7/8 Straight Keyed SAE B SAE -16 Side Inlet, SAE -12 Side Outlet CW 3600 3000 RPM
613873922 1.17 9.1 2-Bolt SAE B 7/8 13T Splined SAE B SAE -12 Side Inlet, SAE -10 Side Outlet CW 3600 3000 RPM
