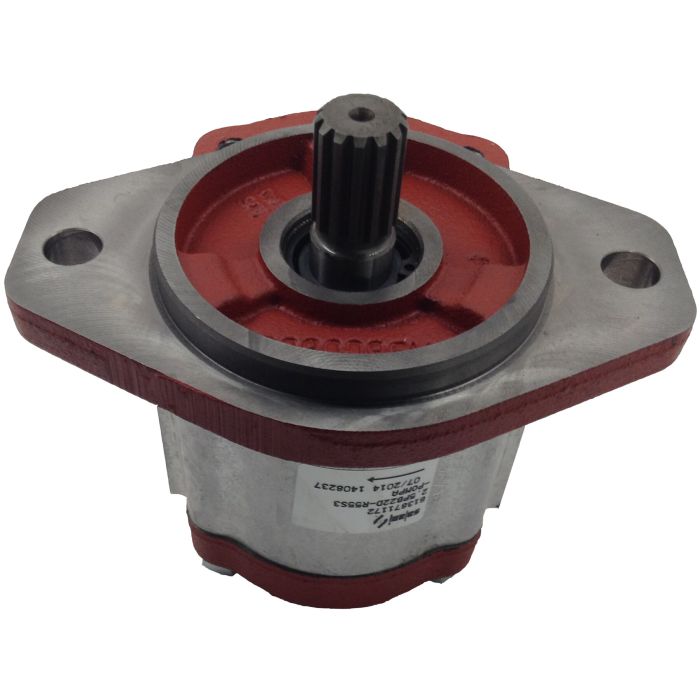

2.5PB Series Aluminum Gear Pump, 1.68 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 13T Splined SAE B Shaft, SAE -16 Side Inlet, SAE -12 Side Outlet, CW Rotation

Displacement 1.68	Displacement 1.68	Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Mount 2-Bolt SAE B	Mount 2-Bolt SAE B	Ports SAE -16 Side Inlet, SAE -12 Side Outlet	Ports SAE -16 Side Inlet, SAE -12 Side Outlet	Pressure Rating 3600	Rated Flow 13	Rated Flow 13	Rotation CW	Shaft 7/8 13T Splined SAE B	Shaft 7/8 13T Splined SAE B	Speed Rating 3000 RPM	Speed Rating 3000 RPM	Supplier Part Number 613871192	Alternate Part Numbers Alternate Part Number 2.5PB28D-R55S3 PUMP, Alternate Part Number C1MR57, Alternate Part Number FMC628-8879	Product Weight 9.92 lbs

Product Questions & Answers 2

Product Questions & Answers

reckon this'll bolt right up to a standard SAE B flange setup?

Question by: Clint M on Sep 28, 2025, 1:36 PM

This pump uses a 2-bolt SAE B mounting flange, so it should fit directly onto any compatible equipment. The shaft is a standard 7/8 13T splined SAE B type.

Answer by: Customer Support on Sep 30, 2025, 12:39 PM

pump says clockwise rotation standard -- can that be changed if my setup needs it to run the other way?

Question by: Ralph F on Sep 12, 2025, 12:45 PM

Rotation can be switched by reversing the position of the drive shaft and driven shaft and rotating the front flange. It's not a permanent configuration, so if your system calls for counterclockwise you're not stuck buying a different unit. Just make sure the change is made correctly before installation since running it backwards without the proper adjustment will cause problems fast.

Answer by: Customer Support on Sep 14, 2025, 6:55 AM

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Pressure Rating	Speed Rating
613871192	1.68	13	2-Bolt SAE B	7/8 13T Splined SAE B	SAE -16 Side Inlet, SAE -12 Side Outlet	CW	3600	3000 RPM
613871202	1.97	15.3	2-Bolt SAE B	7/8 13T Splined SAE B	SAE -16 Side Inlet, SAE -12 Side Outlet	CW	3300	3000 RPM
613871252	1.35	10.5	2-Bolt SAE B	7/8 Straight Keyed SAE B	SAE -12 Side Inlet, SAE -10 Side Outlet	CW	3600	3000 RPM
613871282	1.97	15.3	2-Bolt SAE B	7/8 Straight Keyed SAE B	SAE -16 Side Inlet, SAE -12 Side Outlet	CW	3300	3000 RPM
613873722	1.53	11.8	2-Bolt SAE B	7/8 13T Splined SAE B	SAE -16 Side Inlet, SAE -12 Side Outlet	CW	3600	3000 RPM
613873732	1.53	11.8	2-Bolt SAE B	7/8 Straight Keyed SAE B	SAE -16 Side Inlet, SAE -12 Side Outlet	CW	3600	3000 RPM
613873922	1.17	9.1	2-Bolt SAE B	7/8 13T Splined SAE B	SAE -12 Side Inlet, SAE -10 Side Outlet	CW	3600	3000 RPM
