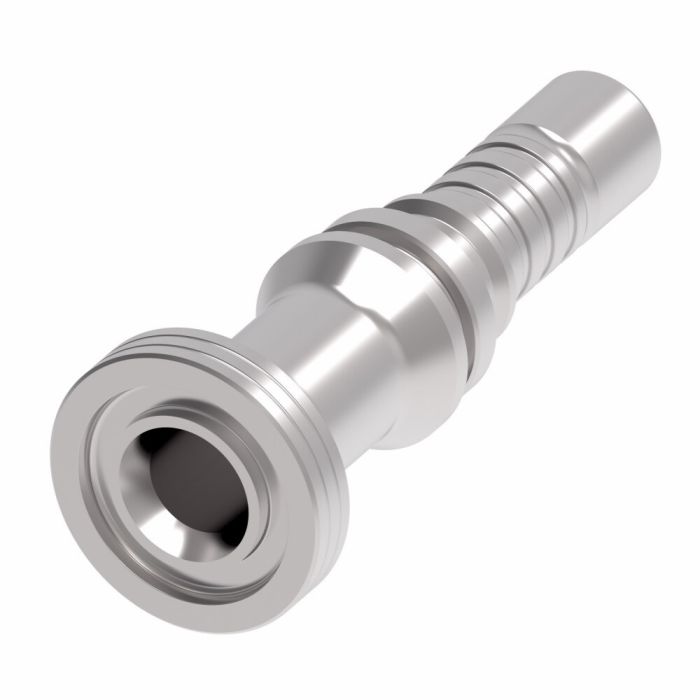

SAE Code 62 Flange

Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Size 1 1.62	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -12	ICC Hose Fittings	Item Type Nipple Assembly	Language English	Product Material Carbon steel	Product Width 1.62	Sub Brand Aeroquip	Supplier Part Number 1W12FH12	Product Weight 0.55 lbs

Product Questions & Answers 2

Product Questions & Answers

does this fitting work with -12 hose or is the dash size referring to something else on the assembly?

Question by: Janet H on Nov 2, 2025, 8:53 PM

The dash size on this fitting is -12, which corresponds to the hose end of the assembly. The flanged end measures 1.62 inches and connects using SAE Code 62 flange pattern. So the -12 is your hose side, and the flange side mates to Code 62 four-bolt connections.

Answer by: Customer Support on Nov 4, 2025, 6:12 AM

Will this fitting hold up okay in a hydraulic system that sees a lot of pressure spikes?

Question by: Danny H on Oct 10, 2025, 8:29 AM

Dura-Kote plating on this fitting provides enhanced corrosion resistance. Also, the innovative design is intended to deliver consistent performance and extend hose assembly life, even under demanding conditions.

Answer by: Customer Support on Oct 11, 2025, 8:35 AM
