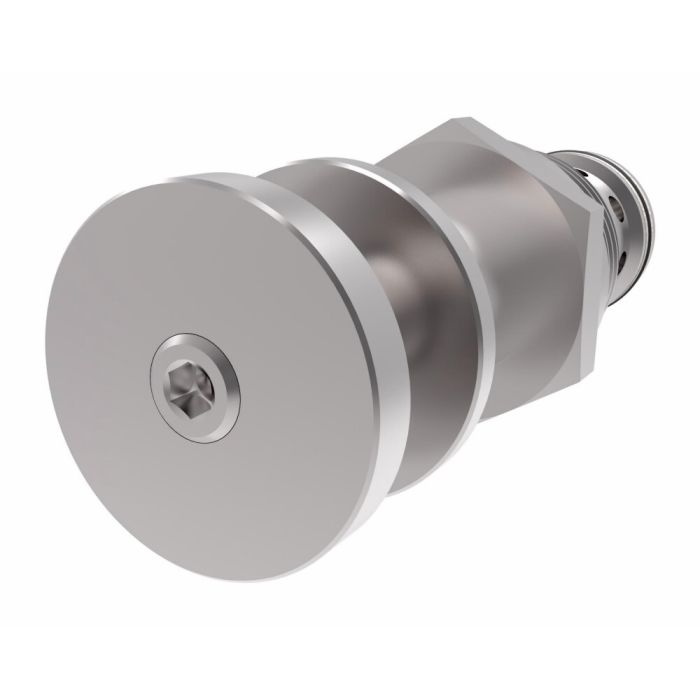

1VR200 Series Pilot-Operated Spool Type Relief Cartridge Valve, 145-3045 PSI Screw Adjustment, Housing: None

Adjustable Range 145-3045	Adjustment No	Adjustment Style Screw	Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Electrical Flag No	Features 350 bar (5000 psi) & 300 L/min (80 USgpm)\|Reliable, economical and compact\|Maximum flexibility and minimum space	Housing None	Installation Type Screw-in Cartridge	Leakage 35 cc/min	Minimum Working Pressure 10	Number of Housing Ports 3	Number of Valve Ports 3	Operation Pilot Operated	Port Type Cartrige Only	Recommended Filtration Level 18/16/13 microns	Remote Control No	Seal Material Nitrile	Seal Type Nitrile	Special Features None	Style Spool	Supplier Part Number 407AA00011A	Switch Connector No	Valve Material Cartridge only	Alternate Part Numbers Alternate Part Number C1LX29	Product Weight 1.09 lbs

Product Questions & Answers 2

Product Questions & Answers

runs continuously on a refuse hauler, will this cartridge hold up or is it gonna have issues with heat and pressure over time?

Question by: Melvin M on Jun 1, 2025, 10:55 AM

Continuous duty is well within what this valve is built for. The 1VR200 is internally pilot operated and rated for up to 5000 PSI with a max flow of 52 GPM, and it's specifically noted as good for continuous duty with accurate pressure control across constant or varying flows. Refuse hauler applications are listed right in the intended use for this series, so it fits that environment without issue.

Answer by: Customer Support on Jun 2, 2025, 2:16 PM

So, this here's just the cartridge, right? I gotta get the housing separate?

Question by: Brenda H on Feb 27, 2026, 3:01 PM

That's correct. This is the cartridge valve only; the housing (cavity size A16102) is sold separately.

Answer by: Customer Support on Mar 1, 2026, 6:19 AM

Similar Products

Part Number	Model Number	Adjustable Range	Adjustment Style	Housing	Seal Material	Price	Buy Now
407AA00011A	1VR200P20S	145-3045	Screw	None	Nitrile
407AA00046A	1VR250P16T20S	145-3045	Screw	SAE-16 ports	Nitrile
