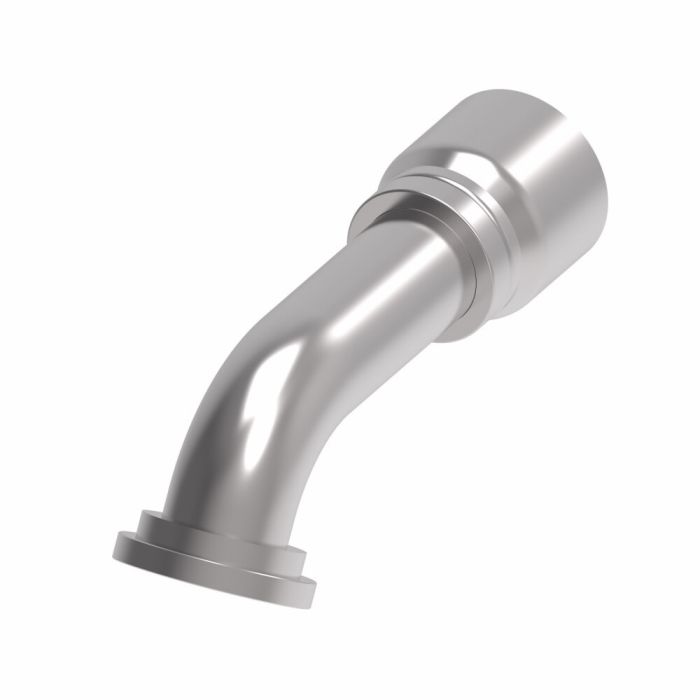

Ftng (perm), 61-flange

Drop Dimension 1.81	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Size 1 2.37	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -24	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Product Material Carbon steel	Product Width 2.37	Sub Brand Aeroquip	Supplier Part Number 1G24FLG24	Product Weight 1.94 lbs

Product Questions & Answers 2

Product Questions & Answers

what's the flange end size on this fitting, and is it set up for a -24 hose?

Question by: Dwayne C on Feb 22, 2026, 2:23 PM

The flanged end comes in at 2.37 inches, and yes, the hose dash size is -24, so it lines right up with -24 hose assemblies. It's a SAE Code 61 configuration with a 60-degree elbow geometry, built as a permanent crimp fitting meant for field crimp assembly under the Aeroquip 1G Series.

Answer by: Customer Support on Feb 24, 2026, 6:18 AM

need a 60 degree elbow with a code 61 flange, is this one a permanent crimp style?

Question by: Harold P on Oct 6, 2025, 3:11 PM

Built as a 1G Series permanent crimp fitting, it’s a SAE Code 61 flange 60 degree elbow. It’s meant to be part of a crimped hose assembly, not a reusable field-attachable end.

Answer by: Customer Support on Oct 7, 2025, 4:34 PM
