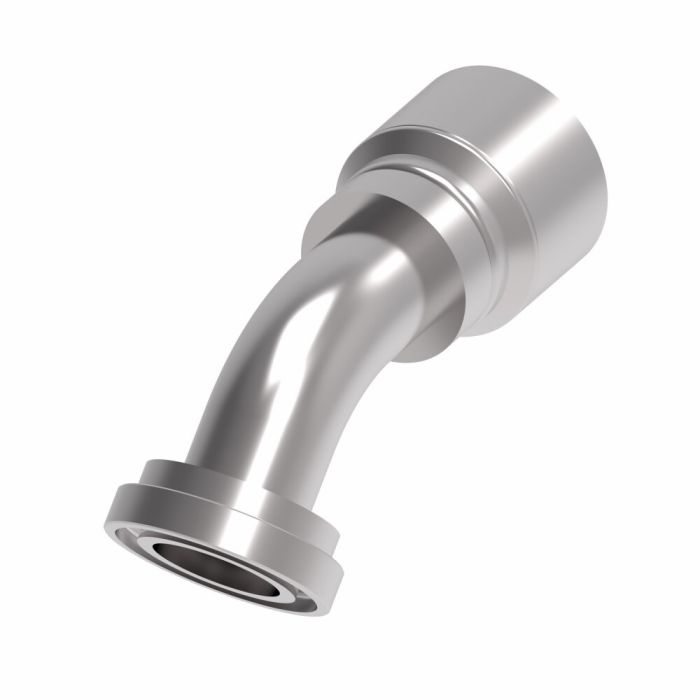

Aeroquip Field Crimp - Code FC 1G24FLA24

Specifications

Drop Dimension 1.41	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Size 1 2.37	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -24	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Product Material Carbon steel	Product Width 2.37	Sub Brand Aeroquip	Supplier Part Number 1G24FLA24	Product Weight 1.69 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to match up fittings, is this one a 45 degree elbow with a Code 61 flange?

Question by: Johnny A on Aug 29, 2025, 3:05 PM

For fit and orientation, it’s a SAE Code 61 flanged 45 degree elbow fitting assembly in the Aeroquip 1G Series Field Crimp line.

Answer by: Customer Support on Aug 31, 2025, 6:35 AM

Will this fitting hold up to typical hydraulic pressures on heavy equipment?

Question by: Kirk M on May 8, 2025, 7:28 AM

This Aeroquip fitting is designed for hydraulic applications, and its Dura-Kote plating offers superior corrosion resistance, which contributes to its overall durability in demanding environments.

Answer by: Customer Support on May 9, 2025, 9:39 AM

what's the flange end size on this fitting, and does the 45 degree angle work for tight routing situations?

Question by: Norm G on Apr 21, 2025, 5:12 PM

The flange end measures 2.37 inches and connects via a SAE Code 61 flanged configuration. That 45 degree elbow gives you a solid change of direction without having to force a bend in the hose itself, which makes it a lot easier to route lines in cramped spaces around equipment frames or bulkheads. The hose end is a dash 24 size, so make sure your hose matches up before ordering.

Answer by: Customer Support on Apr 23, 2025, 11:47 AM
