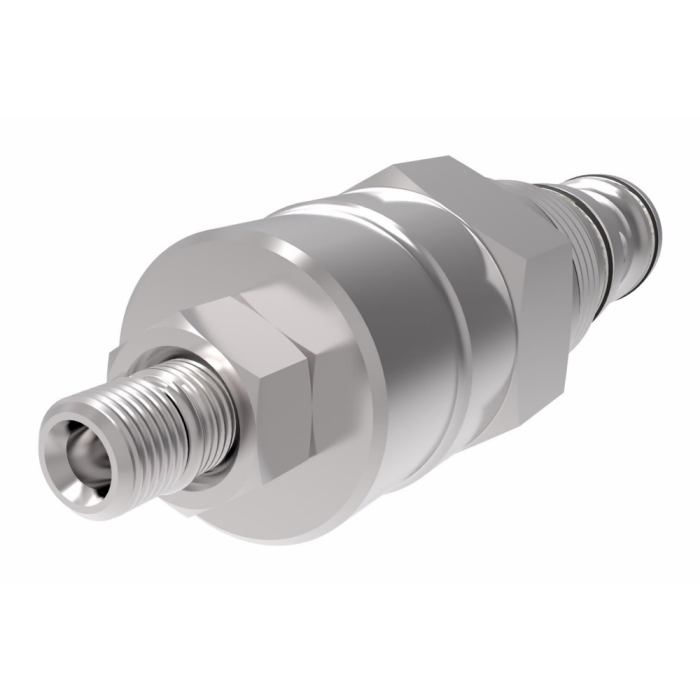

1CEV90 Series Counterbalance Cartridge Valve, 1450 - 5076 PSI (Factory Setting At 2900.00), Screw adjustment, 8:1 Pilot Ratio

Adjustable Range
1450 - 5076
Adjustment Style
Screw adjustment
Control Ratio
8:1
Brand
Danfoss Power Solutions II (Char-Lynn)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Housing
None
Installation Type
Screw-in Cartridge
Leakage
0.25 cc/min
Number of Housing Ports
3
Number of Valve Ports
3
Preset Pressure
2900
Recommended Filtration Level
18/16/13 microns
Seal Material
Nitrile
Supplier Part Number
406AA02964A
Alternate Part Numbers
Alternate Part Number C1MJ90
Product Weight
0.92 lbs

Product Questions & Answers

got a crane application where the load only goes one direction, would a single overcenter valve like this one be the right call or do i need something different?
Question by: Randy M on Feb 25, 2026, 1:17 PM
For a unidirectional load like a crane, a single overcenter valve is exactly what you want. Dual overcenter valves are built for situations where the load swings both ways, like motor applications or cylinders going over center. Since your load stays in one direction, this valve fits that use case. The 8:1 pilot ratio on this one is also worth noting. That ratio works best when your load stays relatively constant, which is typical for crane lifting. If your load varies a lot or your machine structure tends to cause instability, the 4:1 pilot ratio version would be the better pick.
Answer by: Customer Support on Feb 27, 2026, 9:01 AM
What kind of machines would this work on? We're fixin' to replace a valve on a crane.
Question by: Janet R on Mar 25, 2026, 3:59 PM
Single overcenter valves like this one are often used when the load is unidirectional, like you'd find on an aerial platform or a crane. Just be sure your pressures are within the 1450 - 5076 PSI range.
Answer by: Customer Support on Mar 26, 2026, 5:59 PM

Similar Products

Part Number Model Number Control Ratio Adjustment Style Adjustable Range Preset Pressure Housing Seal Material Price Buy Now
406AA02959A 1CEV90F20S4 4:1 Screw adjustment 1015 - 3265 1450 None Nitrile
406AA02964A 1CEV90F35S8 8:1 Screw adjustment 1450 - 5076 2900 None Nitrile
