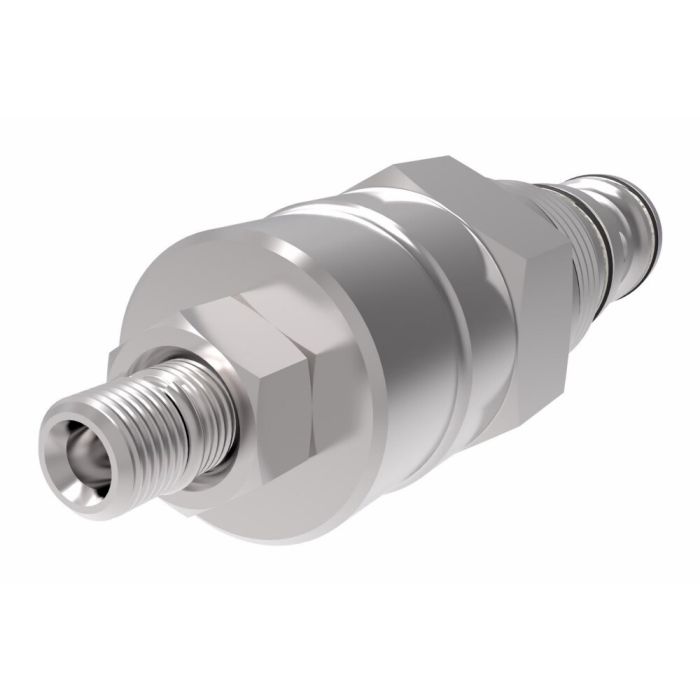

1CEB90 Series Counterbalance Cartridge Valve, 2900 - 5075 PSI Range (Factory Setting At 3000.00), Screw adjustment, Pilot Ratio

Adjustable Range
2900 - 5075
Adjustment Style
Screw adjustment
Application
Harvesters, refuse haulers, mobile and industrial applications
Control Ratio
4:1
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Housing
None
Installation Type
Screw-in Cartridge
Leakage
0.25 cc/min
Maximum Load Induced Pressure
270
Maximum Relief Pressure
350
Number of Housing Ports
3
Number of Valve Ports
4
Preset Pressure
3000
Recommended Filtration Level
18/16/13 microns
Seal Material
Nitrile
Seal Type
Nitrile
Special Features
None
Style
Pilot assisted relief with check
Supplier Part Number
406AA00020A
Alternate Part Numbers
Alternate Part Number 1CEB90F35S4, Alternate Part Number C1MJ85
Product Weight
0.63 lbs

Product Questions & Answers

runs about 23 gpm through our cylinder circuit and we been having runaway issues on the downstroke. this valve rated to handle that flow?
Question by: Dustin G on Oct 24, 2025, 1:42 PM
23 GPM is exactly the rated flow for this cartridge, so you're right at the ceiling but within spec. The counterbalance function is what addresses your runaway concern. When installed on the outlet side of the actuator, it holds a set backpressure against the load so the cylinder can't move faster than the pump is feeding it. Factory setting comes in at 3000 PSI, adjustable anywhere from 2900 up to 5075 PSI with the screw adjustment if your circuit needs something different. Just make sure it goes in close-coupled to the actuator, not downstream in the line, or you lose the hose-burst protection benefit entirely.
Answer by: Customer Support on Oct 26, 2025, 6:55 AM
got a 1CEB90F35S4 already, is this the same counterbalance cartridge or am i mixing up models
Question by: Sherry R on Jul 5, 2025, 1:50 PM
For replacement matching, the model number called out for this valve is 1CEB90F35S4, and it is a 1CEB90 series counterbalance (overcenter) screw-in cartridge with a 4:1 pilot ratio and a factory preset of 3000 psi in a 2900 to 5075 psi adjustable range.
Answer by: Customer Support on Jul 6, 2025, 2:29 PM
I'm looking at using this in a mobile application. What's the story on filtration?
Question by: Dwayne H on Oct 22, 2025, 6:23 AM
This valve is rated to BS5540/4 Class 18/13 (25 micron nominal) filtration. Keeping your hydraulic fluid clean will definitely help with performance and longevity.
Answer by: Customer Support on Oct 23, 2025, 7:47 PM

Similar Products

Part Number Model Number Control Ratio Adjustment Style Adjustable Range Preset Pressure Housing Seal Material Price Buy Now
406AA00020A 1CEB90F35S4 4:1 Screw adjustment 2900 - 5075 3000 None Nitrile
