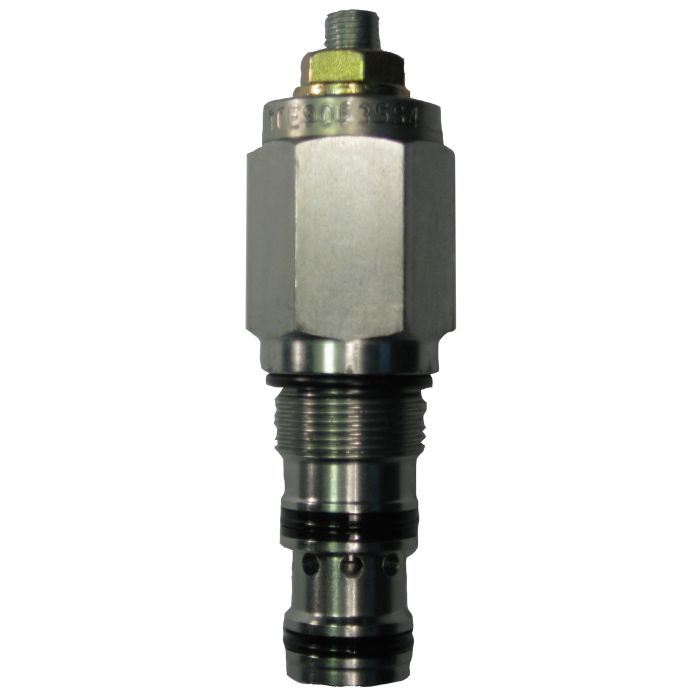

1CE90 Series Counterbalance Cartridge Valves, Up To 4000 PSI & 23 GPM

Application	Single overcenter valves are normally used when the load is unidirectional, for example an aerial platform or crane and dual overcenter valves are used for controlling loads in both directional for motor applications or for cylinders going over center.
Cartridge	Model 1CE90, sold separately.
Features	Overcenter valves give static and dynamic control of loads by regulating the flow into and out of hydraulic actuators. The check section allows free flow into the actuator then holds and locks the load against movement. The pilot assisted relief valve section will give controlled movement when pilot pressure is applied.
Flow Rating	23 GPM
Housing	Cavity size A12336, sold separately.
Pilot Ratios	4:1 Best suited for applications where load varies and machine structure can induce instability. 8:1 Best suited for applications where the load remains relatively constant.
Pressure Rating	5000 PSI (CAUTION: Pressures over 3000 PSI require steel housing)
Recommended Filtration	18/13
Temperature Range	-22° to +194°F

Products

Part Number	Model Number	Control Ratio	Adjustment Style	Adjustable Range	Preset Pressure	Housing	Seal Material	Price	Buy Now
406AA00016A	1CE90F35S4	4:1	Screw	2900-5076	3045	None	Nitrile
