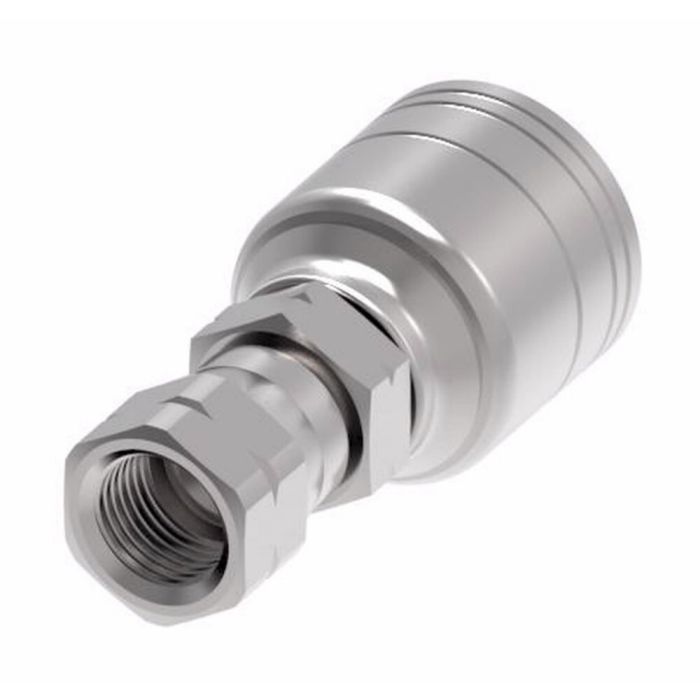

Aeroquip M/M+ 10 FSAE STR SWIV 1AA10FS8

Specifications

Application General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Size 1 0.88	End Type 1 SAE 45	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hex Size 2 0.81	Hose Dash Size -8	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Product Material Carbon Steel	Product Width 1.22	Sub Brand Aeroquip	Supplier Part Number 1AA10FS8	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

got a -8 hose setup and need a straight female swivel, is this one the right dash size?

Question by: Ricky S on Sep 30, 2025, 8:07 AM

The key callouts here are the hose dash size of -8 and the straight female swivel style with an SAE 45 degree female end. If your assembly is built around a -8 hose and uses an SAE 45 female connection, this matches those basics.

Answer by: Customer Support on Oct 1, 2025, 9:17 PM

does this fitting work with -8 hose, or is that just the dash size for something else on the assembly?

Question by: Dale F on Oct 13, 2025, 3:28 PM

The hose dash size is -8, so yes, that refers to the hose end of the fitting itself. One end is female with a 0.875 inch SAE 45 degree connection, and the other end is built for line, hose, or tube attachment with a hex of 0.8125 inches. Straight swivel configuration means you get rotational adjustment during installation, which saves a lot of grief when you're trying to align things in a tight spot.

Answer by: Customer Support on Oct 15, 2025, 6:07 AM
