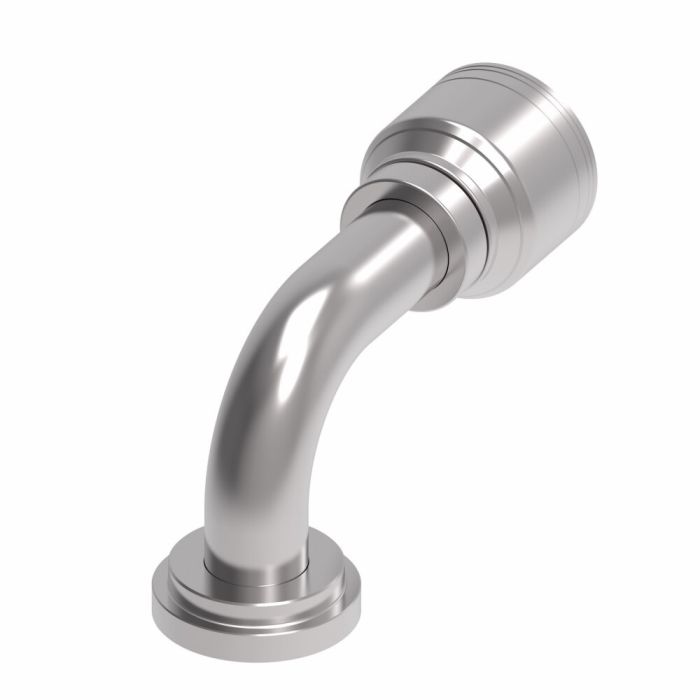

Aeroquip M/M SPL FLG ELL 1A24FLB16

Specifications

Alternate Part Numbers Alternate Part Number C1AN47	Application General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist	Drop Dimension 3.12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -16	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Product Material Carbon Steel	Product Width 2.37	Sub Brand Aeroquip	Supplier Part Number 1A24FLB16	Product Weight 1.51 lbs

Product Questions & Answers 3

Product Questions & Answers

What kind of hydraulic systems is this elbow fitting best for?

Question by: Jerry F on Nov 17, 2025, 7:08 AM

Generally speaking, this Aeroquip fitting works well in low to medium pressure hydraulic setups. If you've got applications where shock could be an issue, you might want to look at H277 or H435 hoses along with it.

Answer by: Customer Support on Nov 19, 2025, 6:14 AM

what's the material on this fitting, and is it gonna hold up in a shop environment where things get banged around pretty regular?

Question by: Kent B on Nov 23, 2025, 10:17 AM

Carbon steel construction with Dura-Kote plating, so corrosion resistance is solid for a general shop setting. The plating is specifically there to extend service life and handle the kind of wear that comes with regular industrial use. It's a -16 dash size SAE Code 61 flanged elbow, built for general purpose low and medium pressure hydraulic systems.

Answer by: Customer Support on Nov 24, 2025, 6:05 PM

Got a -16 hose and need a 90 to a Code 61 flange, is this the right elbow for that?

Question by: Wade G on Nov 24, 2025, 7:12 PM

For a -16 hose size setup that needs an SAE Code 61 90 degree elbow with a flanged end, this 1A Series Aeroquip fitting matches that general configuration. It is a male to male split flange elbow style fitting assembly.

Answer by: Customer Support on Nov 26, 2025, 6:50 AM
