Ss Din Union Tee Complete

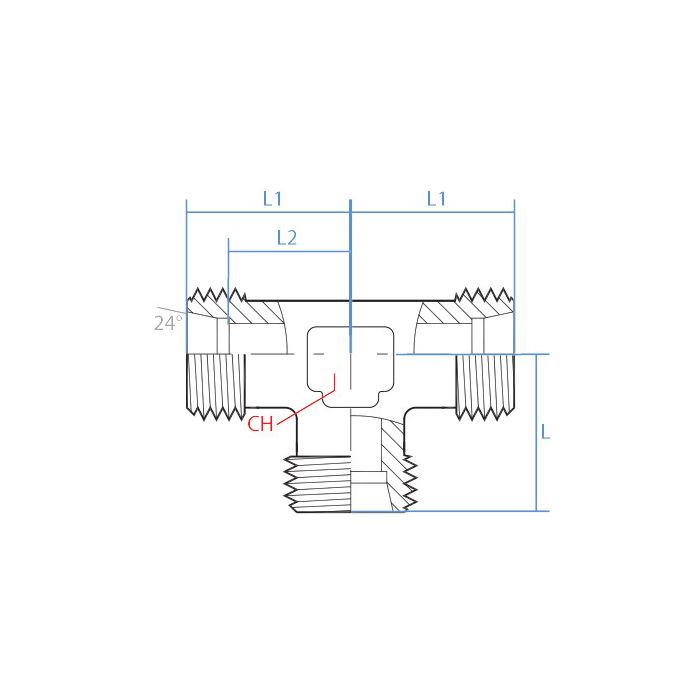

CH Width 27mm	L1 Length 35mm	L2 Length 27.5mm	Adaptall Material Stainless	Adaptall Shape Tee	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender M	Side 2 Size L22	Side 2 Type Din Tube	Side 3 Callout M30 X 2.0	Side 3 Gender M	Side 3 Size L22	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5080L-22C	Product Weight 1.21 lbs

Product Questions & Answers 1

Product Questions & Answers

All three ports on this tee are the same size and thread, right? Trying to branch off a DIN line without mixing fittings and want to make sure I ain't gotta adapt anything.

Question by: Vince M on May 25, 2025, 10:02 AM

All three connections are identical, M30 x 2.0 male DIN tube at L22 on every port. No adapters needed as long as your existing lines are running that same L22 DIN tube spec. It's a fully symmetrical fitting, so any port can serve as the inlet or either branch without concern for orientation.

Answer by: Customer Support on May 27, 2025, 9:30 AM
