Adaptall Ss Din Bulkhead Union SS5040L-15

Specifications

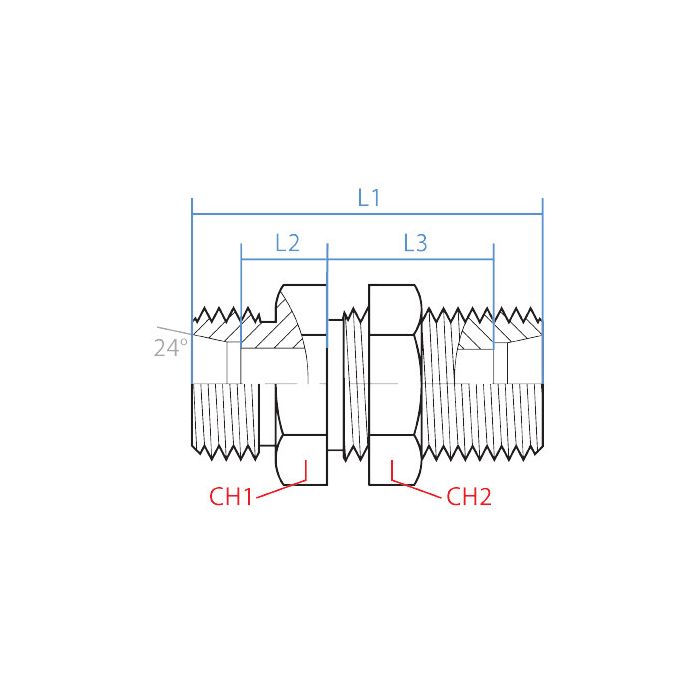

CH1 Width 27mm	CH2 Width 30mm	L1 Length 57mm	L2 Length 12mm	L3 Length 31mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5040L-15	Product Weight 0.26 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this bulkhead union hold up alright in a hydraulic system with some vibration?

Question by: Judy H on Feb 8, 2026, 10:13 AM

Stainless steel construction makes this union plenty durable for industrial settings where vibration is a factor.

Answer by: Customer Support on Feb 10, 2026, 6:14 AM

both sides on this thing are M22 x 1.5 male DIN tube connections right? just want to make sure before i order a couple

Question by: Connie S on May 25, 2025, 2:32 PM

Correct on both counts. Each side runs M22 x 1.5 male thread with an L15 DIN tube connection, and the configuration is identical end to end. Straight union, same callout on both sides, so whatever you're connecting needs to match that spec on each end.

Answer by: Customer Support on May 27, 2025, 11:42 AM

trying to swap out an old bulkhead union, what thread and size is this one again?

Question by: Sheila W on Feb 3, 2026, 10:37 AM

Both ends are M22 x 1.5 male threads and they are DIN tube connections in size L15, so it matches L15 DIN tube setups that use M22 x 1.5 on each side.

Answer by: Customer Support on Feb 4, 2026, 2:17 PM
