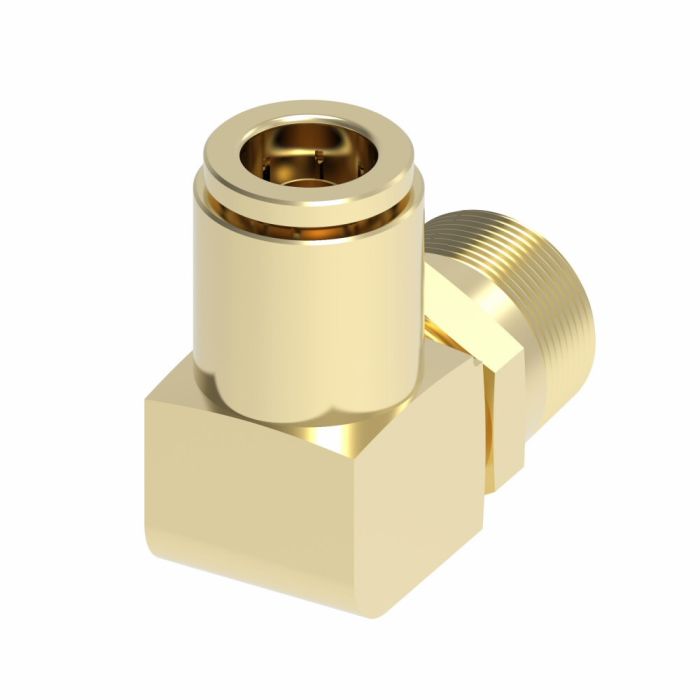

90° Male Elbow Swivel 1869X8X4S

Specifications

Application Air brake systems	Certifications SAE AA02DD\|SAE J1131	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13556	End Size 1 0.50	End Size 2 0.25	End Type 1 Push to Connect	End Type 2 NPTF	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	ICC Elbow Adapters	Item Type Push to Connect /NPTF Male 90° Elbow Adapter	Language English	Minimum Working Temperature -40	Net Pack Quantity Units EA	NMFC 60	Product Material Brass	Product Width 0.85	Sub Brand Weatherhead	Supplier Part Number 1869X8X4S	Product Weight 0.22 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap out an old elbow on an air brake line, what sizes are on this one?

Question by: Marvin S on Dec 17, 2025, 6:18 AM

For sizing, this swivel elbow has a 1/2 inch Push to Connect end on one side and a 1/4 inch NPTF male thread on the other.

Answer by: Customer Support on Dec 18, 2025, 12:13 PM

Does this fitting hold up decent in air brake setups, or is it more of a light-duty thing?

Question by: Johnny W on Nov 12, 2025, 1:35 PM

Air brake systems are actually the primary application for this adapter, so it's built with that environment in mind. The brass construction paired with Dura-Kote plating gives it solid corrosion resistance for the kind of exposure those systems typically see. It also meets SAE J1131 and SAE AA02DD certifications, and Eaton Aeroquip built it to handle operating pressures above standard SAE requirements, so it's not a light-duty piece by any stretch.

Answer by: Customer Support on Nov 13, 2025, 8:49 PM
