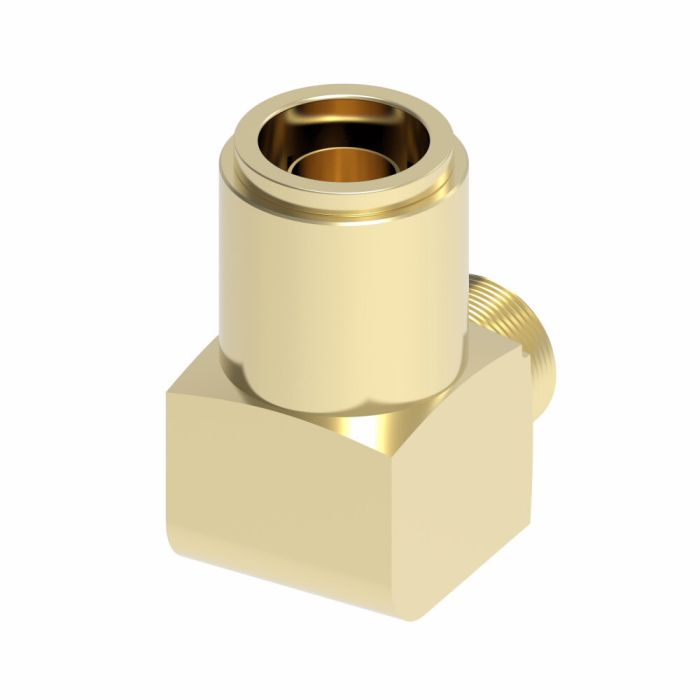

90° Male Elbow 1869X10

Specifications

Application Air brake systems	Certifications SAE AA0302\|SAE J1131	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13556	End Size 1 0.63	End Size 2 0.50	End Type 1 Push to Connect	End Type 2 NPTF	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	ICC Elbow Adapters	Item Type Push to Connect /NPTF Male 90° Elbow Adapter	Language English	Minimum Working Temperature -40	Net Pack Quantity Units EA	NMFC 60	Product Material Brass	Product Width 0.98	Sub Brand Weatherhead	Supplier Part Number 1869X10	Product Weight 0.44 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this work for my truck's air brakes?

Question by: Curt C on Dec 17, 2025, 10:15 AM

This 90° male elbow adapter is designed specifically for air brake systems, so it should be suitable for your truck.

Answer by: Customer Support on Dec 18, 2025, 2:34 PM

does this hook up to a standard air brake line, or do i need some kinda special fitting on the other end?

Question by: Roy P on Jun 6, 2025, 10:47 AM

One end is a push-to-connect that accepts a 5/8-inch line, and the other end is a 1/2-inch NPTF male thread. NPTF is a dry-seal thread, so it forms a pressure-tight seal on its own without tape or sealant when properly torqued into a compatible port. Pretty common setup on air brake systems, which is exactly what this fitting is rated for.

Answer by: Customer Support on Jun 7, 2025, 1:49 PM

got a nylon air brake line that’s push-to-connect, is this elbow the right style for that and what’s on the other end

Question by: Dustin W on Dec 25, 2025, 9:07 AM

For air brake systems, this adapter gives you a push-to-connect female end on one side and a male NPTF threaded end on the other, with a 90 degree elbow and swivel style for routing.

Answer by: Customer Support on Dec 27, 2025, 6:49 AM
