Adaptall Din X Male Npt 5007S-12-08

Specifications

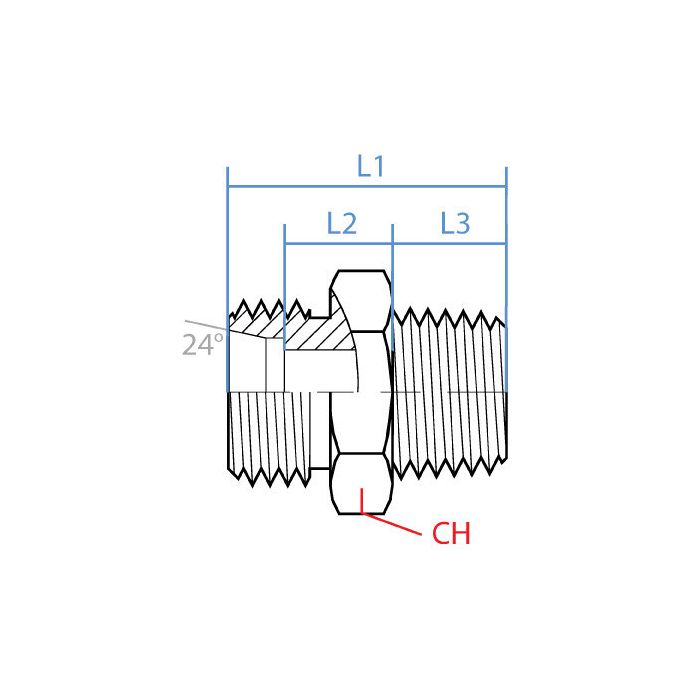

CH Width 22mm	L1 Length 42mm	L2 Length 14.5mm	L3 Length 20mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5007S-12-08	Product Weight 0.18 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this here adapter hold up if I'm running it pretty much all day, every day?

Question by: Ricky J on Dec 4, 2025, 11:06 AM

Constructed from durable steel, this adapter is designed for longevity and resistance to wear, even under demanding industrial conditions. It's built to handle continuous use in hydraulic systems.

Answer by: Customer Support on Dec 6, 2025, 6:51 AM

got a line running M20 x 1.5 DIN tube fittings and need to tie into a 1/2 NPT port, this the right adapter for that?

Question by: Terry O on Jul 12, 2025, 6:03 AM

That's what this one's built for. One end is M20 x 1.5 DIN tube, male, and the other is 1/2-14 NPTF, also male. Both threads are on there, both male, so as long as your receiving ports are female on each side you're good to go. It's a straight adapter, steel construction, 42mm overall length. Adaptall makes it, so the tolerancing is solid.

Answer by: Customer Support on Jul 13, 2025, 10:51 AM

got a hose end that’s M20 x 1.5 DIN, and the port on the valve is 1/2-14 NPTF. is this the straight adapter to tie those together?

Question by: Sherry B on Aug 7, 2025, 9:13 PM

Built for exactly that thread changeover, it has a male M20 x 1.5 DIN tube connection on one side and a male 1/2 - 14 NPTF on the other, in a straight body.

Answer by: Customer Support on Aug 9, 2025, 6:52 AM
