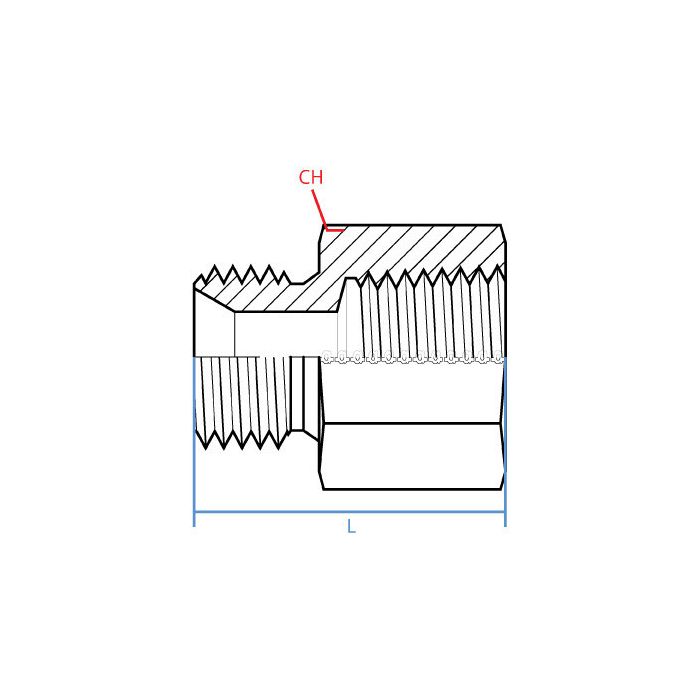

Adaptall Male Metric X Female Npt 9235-24-12

Specifications

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size 24mm	Side 1 Type Metric	Side 2 Callout 3/4 - 14 NPTF	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9235-24-12	Product Weight 0.40 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 3/4 14 nptf female, will this adaptall screw into it on the npt side?

Question by: Steve G on Oct 20, 2025, 7:15 AM

Fit comes down to the thread callouts. One end of this fitting is a 3/4 - 14 NPTF female connection, and the other end is M24 x 1.5 male metric, so it is meant to join those two thread types in a straight adapter.

Answer by: Customer Support on Oct 22, 2025, 6:17 AM

Got a metric line coming off a European pump and need to tie into a 3/4 NPT port on a manifold block. This fitting gonna work for that?

Question by: Shane R on Sep 19, 2025, 1:43 PM

That's the kind of job this fitting handles. One end is M24 x 1.5 male metric, and the other is 3/4-14 NPTF female, so you're threading the metric side into your pump outlet and running the NPT female onto whatever male NPT stub is on that manifold. Steel construction holds up well in working hydraulic systems, and the straight profile keeps the connection clean without any offset or angle to deal with.

Answer by: Customer Support on Sep 21, 2025, 6:51 AM
