Male Jic X Metric Standpipe

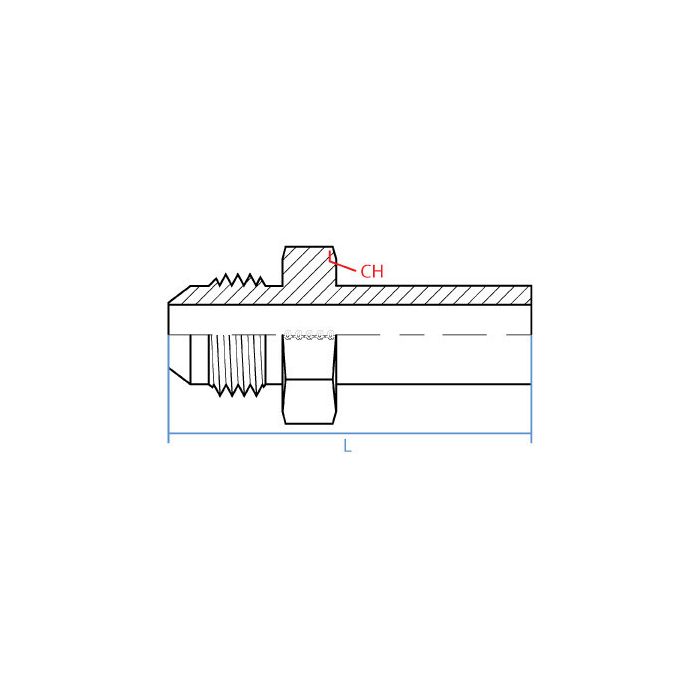

CH Width 27mm	L Length 59mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout 20mm	Side 2 Gender F	Side 2 Size 20mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9200-10-20	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a JIC hose up to a metric standpipe port, is this the right adapter?

Question by: Keith H on Jan 29, 2026, 12:27 PM

For that kind of mix-and-match connection, it’s meant to adapt between a 5/8 inch male JIC end with 7/8-14 UNF threads and a 20 mm female DIN standpipe end, in a straight steel fitting.

Answer by: Customer Support on Jan 31, 2026, 11:46 AM

Will this here fitting hold up to regular use on a piece of farm equipment?

Question by: Duane H on Feb 18, 2026, 9:45 PM

This fitting is made from steel, so it should be durable enough for most regular farm equipment applications.

Answer by: Customer Support on Feb 20, 2026, 11:54 AM
