Male Jic X Metric Standpipe

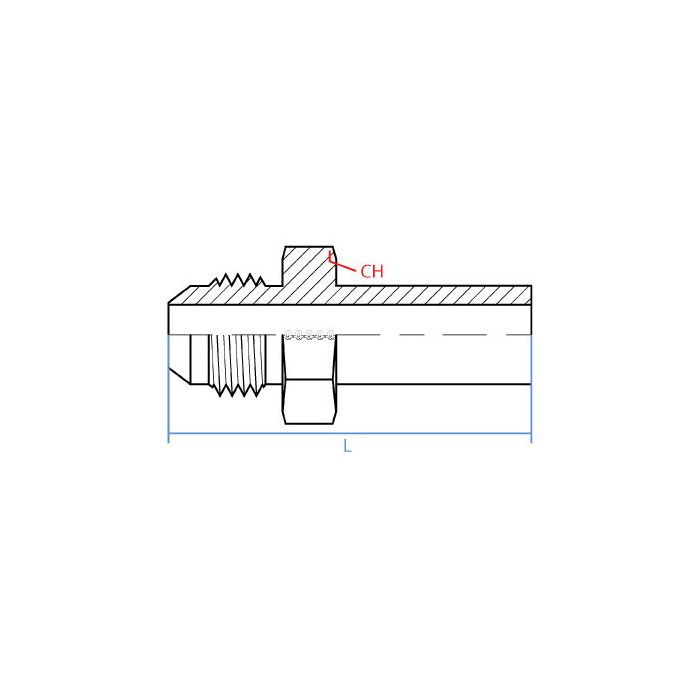

CH Width 22mm	L Length 47.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout 16mm	Side 2 Gender F	Side 2 Size 16mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9200-08-16	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a hydraulic line running 3/4-16 UNF on the JIC side that needs to tie into a 16mm DIN standpipe port. This the right fitting for that?

Question by: Rick B on Feb 13, 2026, 7:32 AM

That's exactly what this one is built for. One end is a 1/2" male JIC with a 3/4-16 UNF thread, and the other connects to a 16mm female DIN standpipe. Straight configuration, all steel, so it drops right into that kind of inline transition without any adapter stacking.

Answer by: Customer Support on Feb 14, 2026, 1:12 PM

got a hose with a 1/2 JIC male end, will this standpipe get me over to a 16mm DIN standpipe port?

Question by: Roy F on Jan 3, 2026, 6:31 AM

For tying those two standards together, it steps from a 1/2 inch male JIC with 3/4-16 UNF threads on one side to a 16 mm female DIN standpipe connection on the other.

Answer by: Customer Support on Jan 4, 2026, 4:45 PM
