Adaptall Bsp Female Tee (Fixed) 9086-20-20-20

Specifications

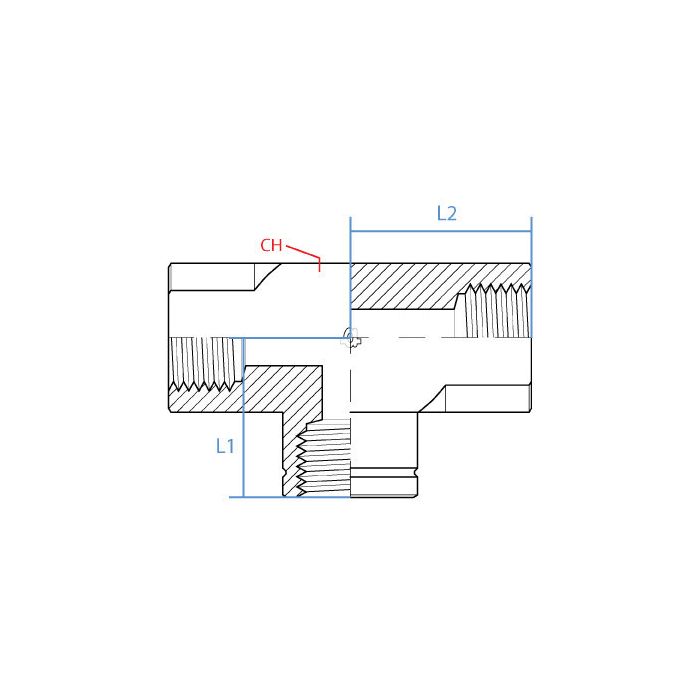

CH Width 57.5mm	L1 Length 55mm	L2 Length 55mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout G 1-1/4 - 11	Side 1 Gender F	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout G 1-1/4 - 11	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Bspp	Side 3 Callout G 1-1/4 - 11	Side 3 Gender F	Side 3 Size 1-1/4"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9086-20-20-20	Product Weight 3.85 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to split one line into two on a hydraulic circuit, is this tee the kind that does that?

Question by: Roger R on Dec 20, 2025, 8:13 PM

In a hydraulic circuit, a tee fitting is used to divert or distribute fluid from one line into two branches, or to bring two lines into a single run. This one is a fixed tee with three female BSPP ports, all G 1-1/4 - 11, so it is meant for tying together three BSPP connections in that tee layout.

Answer by: Customer Support on Dec 22, 2025, 7:20 AM

All three ports on this thing are 1-1/4 inch BSPP female, so there ain't no mix of sizes or thread types across the three connections, right?

Question by: Hank S on Mar 16, 2026, 4:02 PM

Correct on all counts. Every port is G 1-1/4 - 11 BSPP female, so you're working with the same size and thread form across the board. No reducers or adapters needed between ports if your lines are all running 1-1/4 inch BSPP male fittings. Keeps the installation straightforward.

Answer by: Customer Support on Mar 18, 2026, 12:18 PM
