Adaptall Bsp Female Tee (Fixed) 9086-04-04-04

Specifications

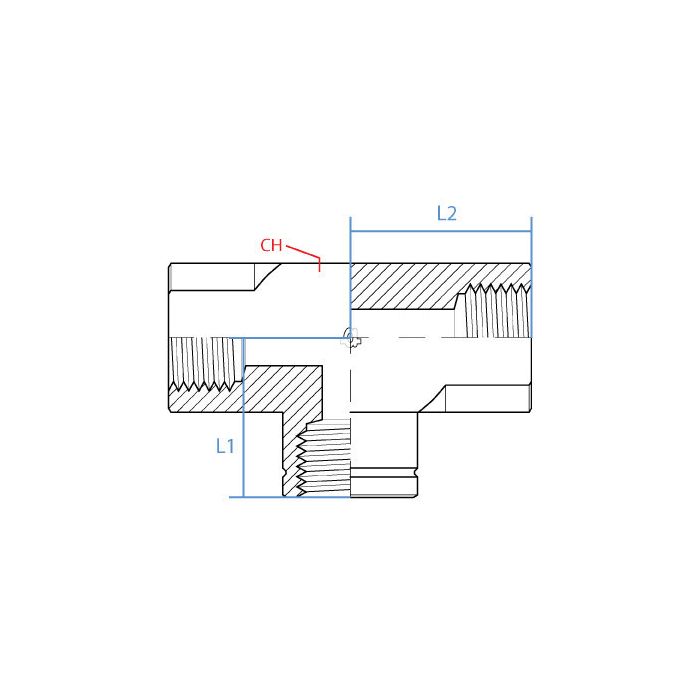

CH Width 19mm	L1 Length 21mm	L2 Length 21mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout G 1/4 - 19	Side 1 Gender F	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Side 3 Callout G 1/4 - 19	Side 3 Gender F	Side 3 Size 1/4"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9086-04-04-04	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to tee off a 1/4 bsp line, are all three ports on this the same thread?

Question by: Shawn O on Mar 3, 2026, 9:01 AM

All three connections are female BSPP and they match each other. Each side is 1/4 inch with a G 1/4 - 19 thread callout, so you are not mixing sizes on this tee.

Answer by: Customer Support on Mar 5, 2026, 6:12 AM

Hey, just want to make sure this tee fitting will work with my existing BSPP connections? They're all 1/4".

Question by: Rod S on Nov 23, 2025, 10:32 AM

This BSP female tee is made to work directly with other components using 1/4" BSPP connections. All three ports are G 1/4 - 19 thread type.

Answer by: Customer Support on Nov 25, 2025, 7:23 AM

all three ports on this tee the same size and thread type, or are any of them different?

Question by: Phil H on Nov 11, 2025, 8:08 PM

All three connections are identical. Each port is 1/4" BSPP with a G 1/4 - 19 thread, so you're working with a fully uniform fitting across all three sides. No adapters needed to match ports if your lines are already set up for BSPP.

Answer by: Customer Support on Nov 13, 2025, 8:21 AM
