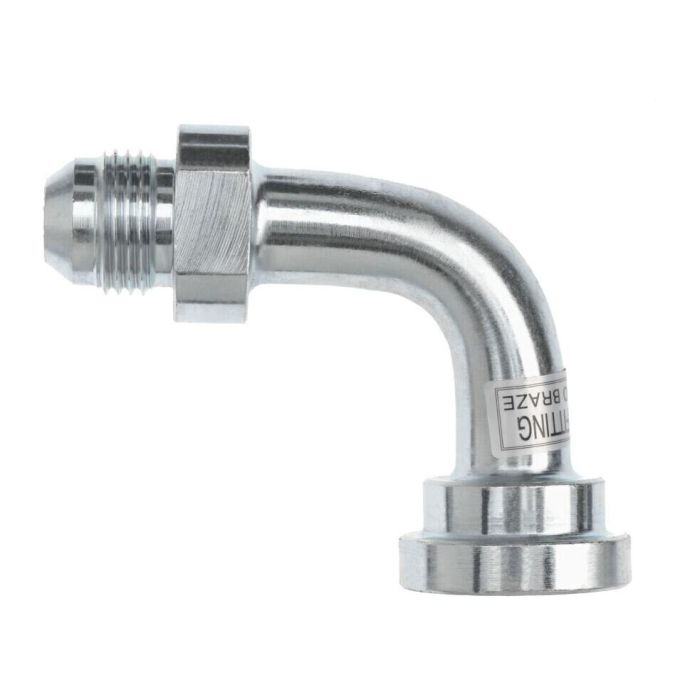

16MJ-20FLANGE 90 ELBOW CODE 61

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1704-16-20	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap out an elbow on a Code 61 flange setup, is this one the 1 1/4 flange size?

Question by: Gene A on Jan 15, 2026, 9:05 AM

It matches a Brennan 2 flange size of 1 1/4 inch and it is called out as a Code 61 90 degree elbow, so it lines up with a Code 61 flange connection in that size.

Answer by: Customer Support on Jan 17, 2026, 6:15 AM

got a 1 1/4 inch flange port on a manifold block and need a 90 to swing the line out, does this fitting match up to that size?

Question by: Ray H on Feb 24, 2026, 9:26 AM

For a 1 1/4 inch Code 61 flange port, this is the right fit. The flange end on this elbow is sized at 1 1/4 inches and built to Code 61 spec, so it'll bolt right up to a standard Code 61 port of that size. The male thread on the other end runs 1 5/16-12 UN, which is a 16MJ thread, so make sure whatever hose or tube assembly you're connecting to on that side is spec'd to match.

Answer by: Customer Support on Feb 26, 2026, 6:50 AM

So this here's got a 1 5/16-12 UN thread, right? Just wanna make sure before I order.

Question by: Hugh R on Dec 4, 2025, 5:31 PM

Yes, that's correct. This elbow fitting features a 1 5/16-12 UN male thread. That'll give you a secure connection.

Answer by: Customer Support on Dec 6, 2025, 4:35 PM
