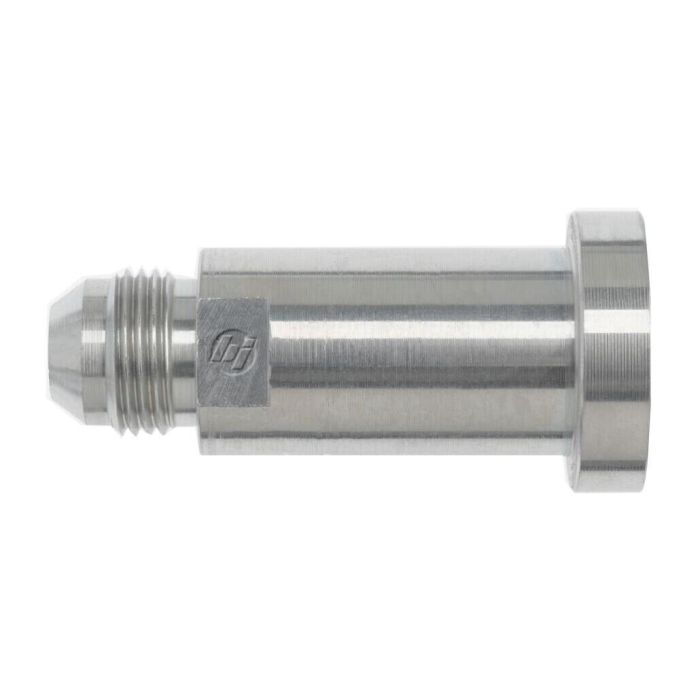

16MJ-16FLANGE STRAIGHT CODE 61

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1700-16-16	Product Weight 1.00 lbs

Product Questions & Answers 3

Product Questions & Answers

What size wrench do I need for this flange?

Question by: Johnny P on Aug 18, 2025, 6:55 AM

You'll need a 1.625 inch wrench (across flats) to tighten this fitting properly.

Answer by: Customer Support on Aug 20, 2025, 6:28 AM

got a 1 inch tube on my setup. is this fitting the one with the 1 5/16-12 thread and the Code 61 straight flange?

Question by: Diane A on Jan 29, 2026, 6:40 PM

The key callouts on this part are a 1 inch tube OD, a 1 5/16-12 thread, and a straight Code 61 flange with size 1 connection.

Answer by: Customer Support on Jan 31, 2026, 8:05 AM

What size tubing does this flange fitting actually connect to?

Question by: Keith B on Apr 13, 2025, 5:12 PM

Built around a 1-inch tube outer diameter, so you'd be pairing it with 1-inch OD hydraulic tubing on the male JIC side. The flange end is a size 16, which corresponds to that same 1-inch line size. Thread on the JIC end is 1 5/16-12, which is standard for that tube size.

Answer by: Customer Support on Apr 15, 2025, 4:36 PM
