Adaptall Male Jic X Male Metric Thread 2617985

Specifications

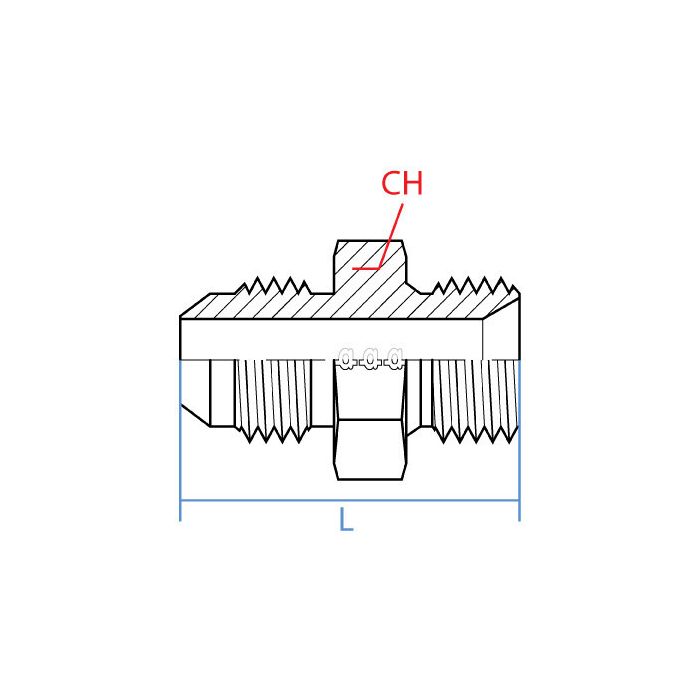

CH Width 25.5mm	L Length 39.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9067-10-18	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting hold up okay in a hydraulic system on a farm tractor, or is it more for lighter duty stuff?

Question by: Wade C on Sep 3, 2025, 9:16 AM

This Adaptall fitting is made of steel, so it should be durable enough for typical hydraulic applications on a farm tractor.

Answer by: Customer Support on Sep 5, 2025, 6:32 AM

trying to hook a JIC hose up to a metric port, is this the right adapter for that?

Question by: Dale S on Oct 3, 2025, 10:40 AM

For bridging those two thread standards, it’s a straight steel adapter with a male JIC end and a male metric end. Side 1 is 7/8-14 UNF male JIC (5/8 size), and side 2 is M18 x 1.5 male metric (18 mm size).

Answer by: Customer Support on Oct 4, 2025, 1:11 PM

Got a hydraulic line coming off a metric port at M18 x 1.5 and need to tie into a JIC system on the other end. This the right adapter for that?

Question by: Sherry S on Apr 14, 2025, 7:26 PM

That's what this one's built for. One end is M18 x 1.5 male metric, the other is 7/8-14 UNF male JIC at a 5/8" size. Both ends are male, so you'd need female receivers on both sides of your circuit. It's a straight adapter, steel construction, 39.8mm overall length with a 25.5mm wrench flat for torquing it down clean.

Answer by: Customer Support on Apr 16, 2025, 2:24 PM
