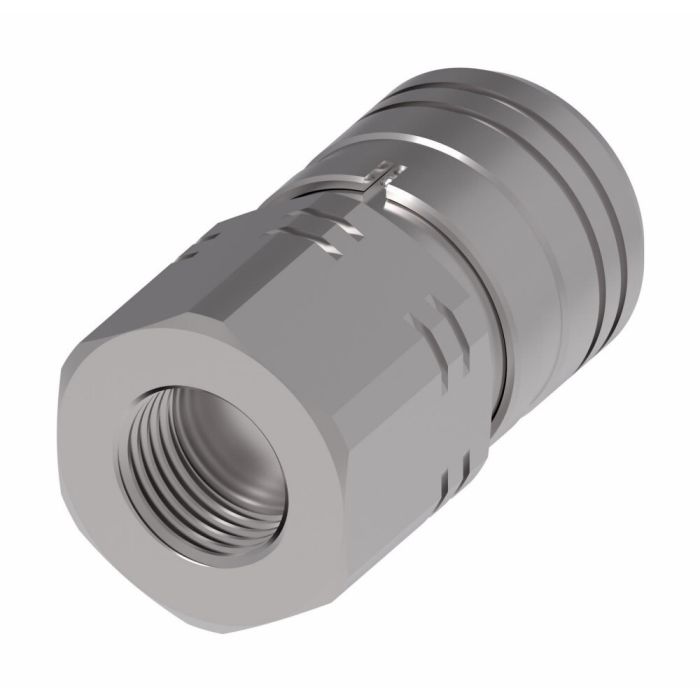

Danfoss / Eaton FemaleCoupler 16FFS106UN

Specifications

Application Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size	Certifications ISO 16028	Compliances RoHS Compliant\|European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3\|REACH	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13555	End Type 1 Push to Connect	End Type 2 SAE	Features Quick connect and disconnect\|No need for special tools\|Exceeds ISO 16028 operating pressures	Flow Rate1 21.7 gallons per minute	ICC Quick Disconnect Couplings	Internal Connection Type Flat Face	Item Type Female Half	Language English	Minimum Working Temperature -13	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 1.66	Safety locking Mechanism Sleeve lock	Seal Material NBR+AU	Sub Brand Hansen	Supplier Part Number 16FFS106UN	Torque Rating 46.1 lb/ft	Torque Rating 46.1 lb/ft	Valve Type 2 way	Product Weight 1.20 lbs

Product Questions & Answers 2

Product Questions & Answers

Reckon this'll swap right in for my old 3/8 HTMA coupler?

Question by: Pete M on Oct 4, 2025, 7:39 PM

Precisely, this Eaton Aeroquip female coupler is designed to be interchangeable with HTMA couplings in the 3/8” size.

Answer by: Customer Support on Oct 6, 2025, 4:36 PM

Flow rate on this one any good for a mid-size ag setup? Running a loader and a couple hydraulic remotes off the tractor, want to make sure it aint gonna be a bottleneck.

Question by: Jimmy G on Nov 15, 2025, 4:47 PM

At 21.7 gallons per minute, this coupler handles a solid flow for mid-size agricultural setups. Running a loader alongside hydraulic remotes is well within what this fitting is rated to move. The flat face internal connection also keeps things clean and leak-free at that flow, which matters when you're switching implements out in the field.

Answer by: Customer Support on Nov 17, 2025, 6:34 AM
