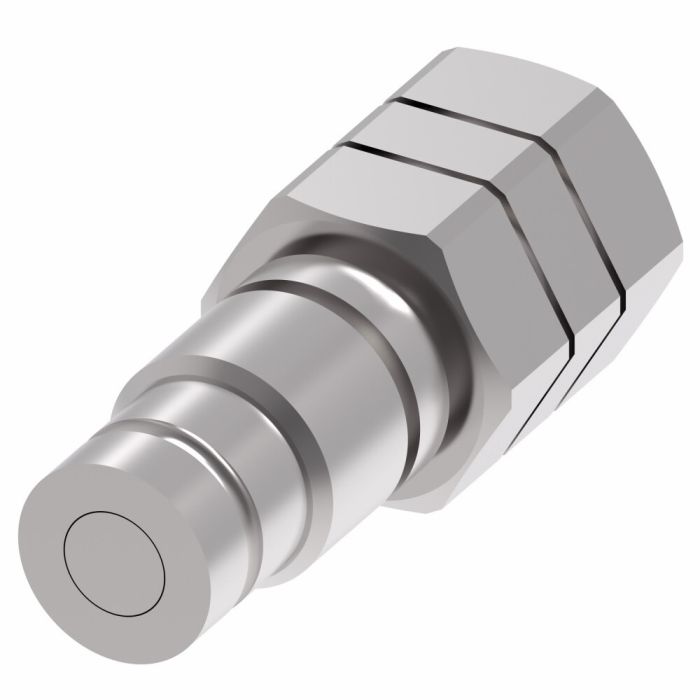

Danfoss / Eaton Male Plug 16FFP106UN

Specifications

Application Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size	Certifications ISO 16028	Compliances RoHS Compliant\|REACH\|European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13555	End Type 1 Push to Connect	End Type 2 SAE	Features Quick connect and disconnect\|No need for special tools\|Exceeds ISO 16028 operating pressures	Flow Rate1 21.7 gallons per minute	ICC Quick Disconnect Couplings	Internal Connection Type Flat Face	Item Type Male Half	Language English	Minimum Working Temperature -13	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 1.56	Safety locking Mechanism Sleeve lock	Seal Material NBR+AU	Sub Brand Hansen	Supplier Part Number 16FFP106UN	Torque Rating 46.1 lb/ft	Torque Rating 46.1 lb/ft	Valve Type 2 way	Product Weight 0.68 lbs

Product Questions & Answers 2

Product Questions & Answers

got a 3/8 HTMA flat-face setup on a skid steer, will this male plug swap in without a bunch of messing around

Question by: Bonnie B on Oct 16, 2025, 10:31 AM

For a 3/8 HTMA flat-face connection, this male half is called out as interchangeable with HTMA couplings in the 3/8 inch size, and it uses a flat face internal connection type to help keep spills down during connect and disconnect.

Answer by: Customer Support on Oct 18, 2025, 6:47 AM

Running a 3/8 HTMA setup on my skid steer loader and need a flat face male plug to replace one that got busted up. This the right fit?

Question by: Jerry B on Aug 21, 2025, 2:09 PM

For 3/8 HTMA couplings with a flat face configuration, yeah, this is the right piece. The 16FFP106UN is built specifically to be interchangeable with HTMA couplings in the 3/8 size, and the flat face internal connection type means it'll mate up clean with minimal fluid loss on disconnect. Carbon steel construction holds up well in the kind of abuse that comes with skid steer work, and the sleeve lock keeps it from backing out under pressure. Push-to-connect end type means no tools needed to get it seated.

Answer by: Customer Support on Aug 23, 2025, 10:25 AM
