Adaptall 45*Mjic X Male Metric Adj Elb 2617690

Specifications

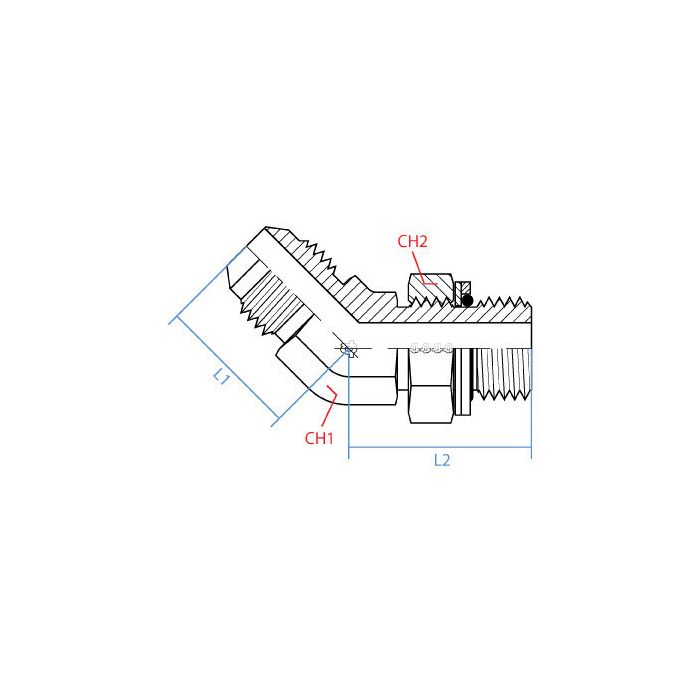

CH1 Width 26mm	CH2 Width 32mm	L1 Length 30mm	L2 Length 43mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M27 X 2.0	Side 2 Gender M	Side 2 Size 27mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9066-12-27	Product Weight 0.55 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end that’s 3/4 JIC male, and the port on the block is M27 x 2.0. is this the elbow that ties those together?

Question by: Hugh M on Oct 25, 2025, 10:34 AM

For connecting those two thread types, it matches up as a 45 degree steel adapter with a 3/4 inch JIC male on one side using 1-1/16-12 UN threads, and an M27 x 2.0 male metric on the other side.

Answer by: Customer Support on Oct 26, 2025, 2:09 PM

Got a metric port on a hydraulic block and need to tie into a 3/4" JIC line, but the routing ain't straight, will this fitting let me angle the outlet where I need it?

Question by: Marvin H on Oct 14, 2025, 6:22 PM

That's what this one's built for. The adjustable elbow design lets you set the outlet angle during installation, so you're not stuck fighting a fixed direction. One side threads into your M27 x 2.0 metric port, and the other connects to your 3/4" JIC male line. Steel construction, and the wrench flats are 26mm and 32mm, so you've got good purchase on both sides when you're torquing it down.

Answer by: Customer Support on Oct 16, 2025, 2:29 PM

Reckon this'll fit up with my existing metric stuff without causing a headache?

Question by: Danny E on Apr 18, 2025, 8:01 AM

This adapter is designed to bridge the gap between your 3/4" JIC male fitting (1-1/16-12 UN thread) and a 27mm male metric port (M27 x 2.0 thread). It's meant for situations where you can't just use a straight connector.

Answer by: Customer Support on Apr 19, 2025, 6:35 PM
