Adaptall 45* Elb. Mbspp X Adjust.Mbspp 9051-16-16

Specifications

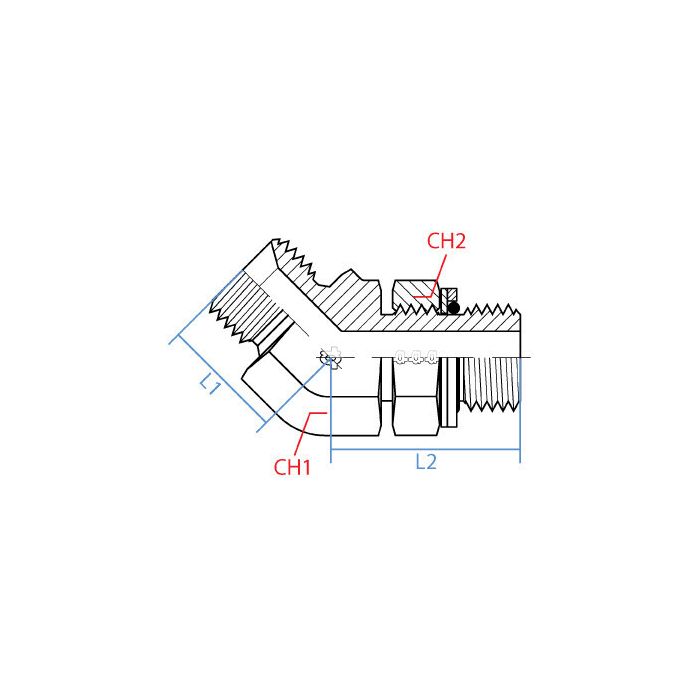

CH1 Width 33mm	CH2 Width 44mm	L1 Length 34mm	L2 Length 44mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9051-16-16	Product Weight 0.80 lbs

Product Questions & Answers 2

Product Questions & Answers

What size connections does this elbow fitting have?

Question by: Janice H on Apr 18, 2025, 5:07 PM

This elbow fitting features 1-inch BSPP male connections on both ends.

Answer by: Customer Support on Apr 19, 2025, 9:53 PM

Both ends on this thing are 1" BSPP male, so how exactly does it connect to anything if there ain't a female end on either side?

Question by: Joyce F on Jan 30, 2026, 1:25 PM

Good catch if you're new to adjustable fittings. The "adjustable" side uses a captive nut arrangement, so even though the thread callout is male BSPP on both ends, one side locks down against a mating female port through that adjustable locknut design. It gives you the ability to clock the elbow to whatever position works for your hose or tube routing before you tighten it down. Both sides carry the same G 1-11 thread spec, so you're working with standard 1-inch BSPP threads throughout.

Answer by: Customer Support on Feb 1, 2026, 8:58 AM
