Adaptall Female Bspp Swivel X Swivel 9025-20-20

Specifications

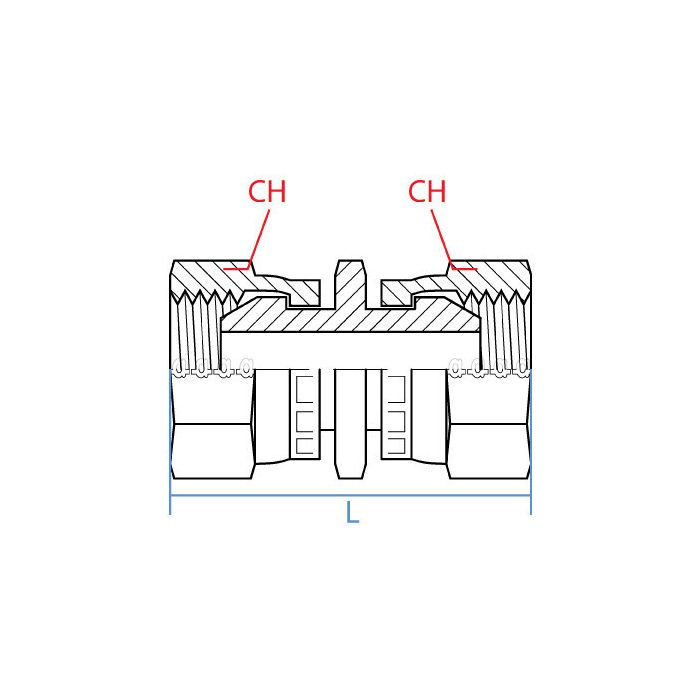

CH1 Width 50mm	CH2 Width 50mm	L Length 56mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1-1/4 - 11	Side 1 Gender F	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout G 1-1/4 - 11	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9025-20-20	Product Weight 0.90 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap out a straight adapter, is this one female bspP swivel on both ends and the same thread both sides?

Question by: Kurt C on Aug 19, 2025, 3:15 PM

Both ends are female BSPP swivels, and each side is threaded G 1-1/4 - 11, so it is a swivel x swivel with matching threads on both ends.

Answer by: Customer Support on Aug 21, 2025, 6:21 AM

both ends on this thing are female BSPP swivel, right? just want to make sure i don't order the wrong one for a line that's got fixed ports on both sides

Question by: Bobby H on Apr 3, 2026, 7:52 PM

Correct on both counts. Both ends are female BSPP, each threaded to the G 1-1/4 - 11 standard, and both sides swivel. That swivel action on each end is exactly what makes this useful when you've got two fixed ports that can't rotate to meet each other. You get angular flexibility during assembly without having to force or twist the lines into position.

Answer by: Customer Support on Apr 5, 2026, 11:42 AM

Will this fitting work for connecting two 1-1/4" BSPP female connections?

Question by: Cody W on Dec 9, 2025, 3:42 PM

Yes, it will. This Adaptall fitting is specifically designed to connect two 1-1/4" female BSPP swivel connections. It's a straight fitting with the G 1-1/4 - 11 threading on both ends.

Answer by: Customer Support on Dec 11, 2025, 6:54 AM
