Adaptall Male Sae O-Ring Boss-Male Bspp 9006-16-20

Specifications

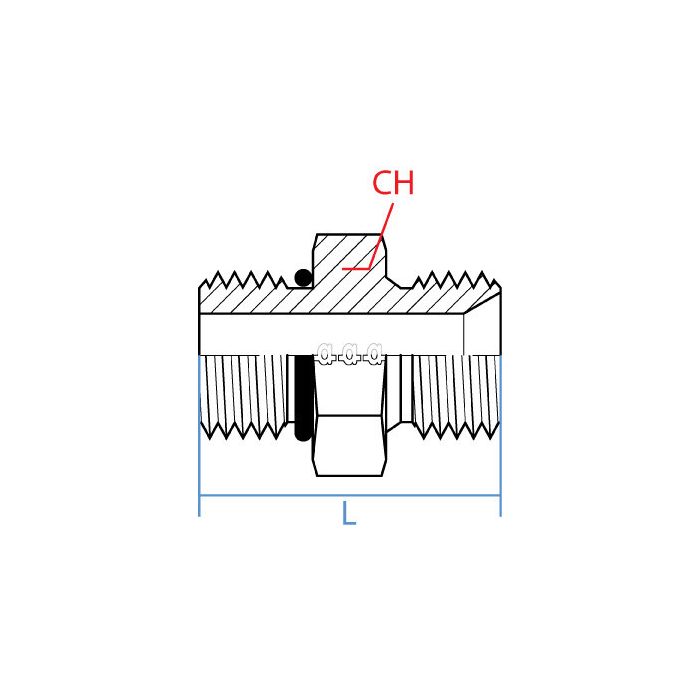

CH Width 50mm	L Length 51.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Orb-Sae	Side 2 Callout G 1-1/4 - 11	Side 2 Gender M	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-16-20	Product Weight 0.73 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a machine running SAE O-Ring Boss ports but the hydraulic line coming off it has a BSPP male end on it, will this fitting get me sorted out or am I looking at the wrong part?

Question by: Ralph W on Mar 31, 2026, 1:35 PM

You'd have the wrong end of the stick with that setup. This adapter puts Male SAE O-Ring Boss on one side and Male BSPP on the other, so both ends thread into female ports, not onto male ends. If your machine has a female ORB port and your line terminates in a female BSPP connection, then yeah, this is exactly what bridges that gap. The ORB side is 1" with a 1-5/16-12 UN thread and the BSPP side is 1-1/4" running a G 1-1/4-11 thread.

Answer by: Customer Support on Apr 2, 2026, 7:08 AM

Will this here fitting hold up okay for hooking up a hydraulic line to a BSPP port?

Question by: Lynn M on Jul 31, 2025, 9:47 PM

It's made for just that – this steel straight adapter fitting has a Male SAE O-Ring Boss (ORB) on one side for your hydraulic line and a Male BSPP on the other side to connect to your BSPP port.

Answer by: Customer Support on Aug 2, 2025, 7:28 AM
