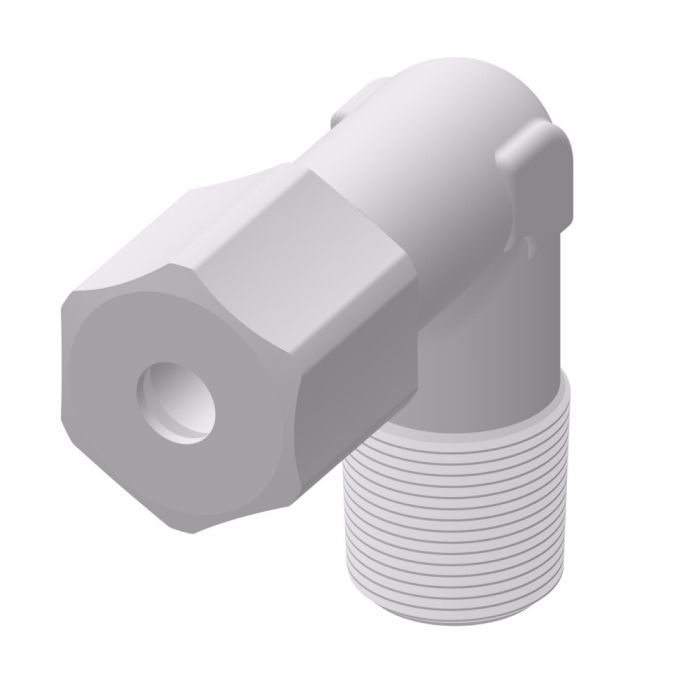

Male Elbow 1569X8X4G

Specifications

Certifications NSF Listed	Drop Dimension 1.09	Brand Danfoss (Aeroquip Inc-Industrial Hose)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13556	End Size 1 0.39	End Size 2 0.25	End Type 1 Line/Hose/Tube	End Type 2 NPTF	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	ICC Elbow Adapters	Item Type Line/Hose/Tube Female/NPTF Male 90° Elbow Adapter	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Nylon	Product Width 0.09	Sub Brand None	Supplier Part Number 1569X8X4G	Product Weight 0.03 lbs

Product Questions & Answers 3

Product Questions & Answers

what size tubing does this thing hook up to and what's the thread on the male end?

Question by: Terry J on Jun 1, 2025, 10:28 AM

The tube-side connection handles 0.39 inch line or hose, and the male threaded end is a quarter-inch NPTF. The 90-degree elbow layout makes it a solid pick when you need to change direction in a tight spot without adding extra fittings.

Answer by: Customer Support on Jun 3, 2025, 9:59 AM

got a nylon tube line that needs to turn 90 degrees, is this the right kind of elbow for that?

Question by: Wes S on Mar 13, 2026, 6:42 AM

For a 90° turn, it’s a Line/Hose/Tube female to NPTF male elbow adapter made from nylon, so it’s meant to transition from a tube/line connection on one end to an NPTF male thread on the other.

Answer by: Customer Support on Mar 14, 2026, 3:49 PM

Will this nylon elbow hold up okay outside?

Question by: Rhonda P on May 22, 2025, 3:39 PM

Eaton's Dura-Kote plating gives this elbow superior corrosion resistance, which should help extend its life in outdoor environments.

Answer by: Customer Support on May 23, 2025, 5:59 PM
