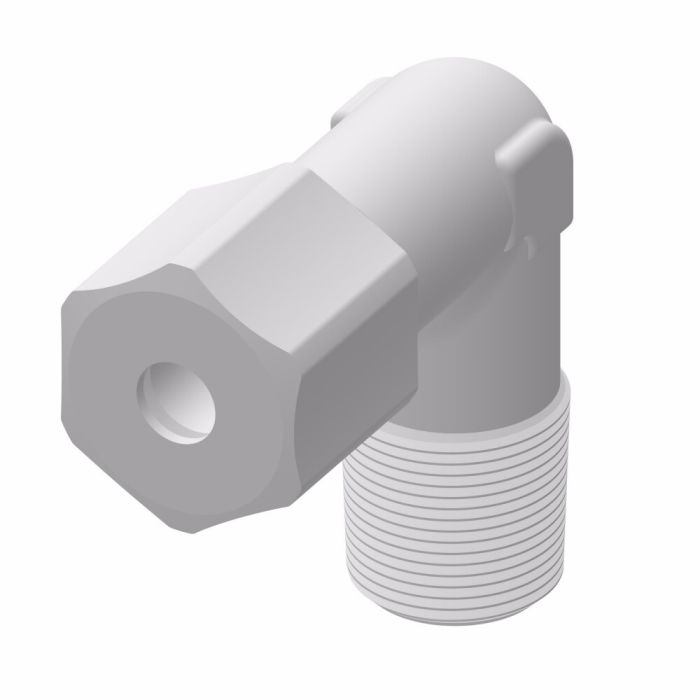

Male Elbow 1569X4X6

Specifications

Certifications NSF Listed	Drop Dimension 1.09	Brand Danfoss (Aeroquip Inc-Industrial Hose)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13556	End Size 1 0.25	End Size 2 0.38	End Type 1 Line/Hose/Tube	End Type 2 NPTF	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	ICC Elbow Adapters	Item Type Line/Hose/Tube Female/NPTF Male 90° Elbow Adapter	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Nylon	Product Width 0.56	Sub Brand None	Supplier Part Number 1569X4X6	Product Weight 0.01 lbs

Product Questions & Answers 3

Product Questions & Answers

what's the thread size on the male end of this fitting? trying to match it up to a 3/8 port on a manifold block

Question by: Darryl Y on Apr 16, 2025, 11:15 AM

The male end runs 3/8 NPTF, so it'll thread right into a standard 3/8 NPTF port without any adapters in between. The female tube side accepts 1/4 inch line, so just make sure your tubing matches that before you order.

Answer by: Customer Support on Apr 17, 2025, 11:31 AM

got a 1/4 line coming in and need to turn 90 degrees into a 3/8 NPTF port, is this the right elbow?

Question by: Howard B on Feb 23, 2026, 1:29 PM

For that hookup, the sizes on this adapter match what you described. One end is a 0.25 line or hose or tube female connection, and the other end is a 0.375 NPTF male, in a 90 degree elbow.

Answer by: Customer Support on Feb 24, 2026, 9:26 PM

Is this elbow NSF certified for potable water?

Question by: Neal H on May 14, 2025, 6:53 PM

Yes, this Eaton male elbow adapter is NSF listed.

Answer by: Customer Support on May 16, 2025, 2:01 PM
