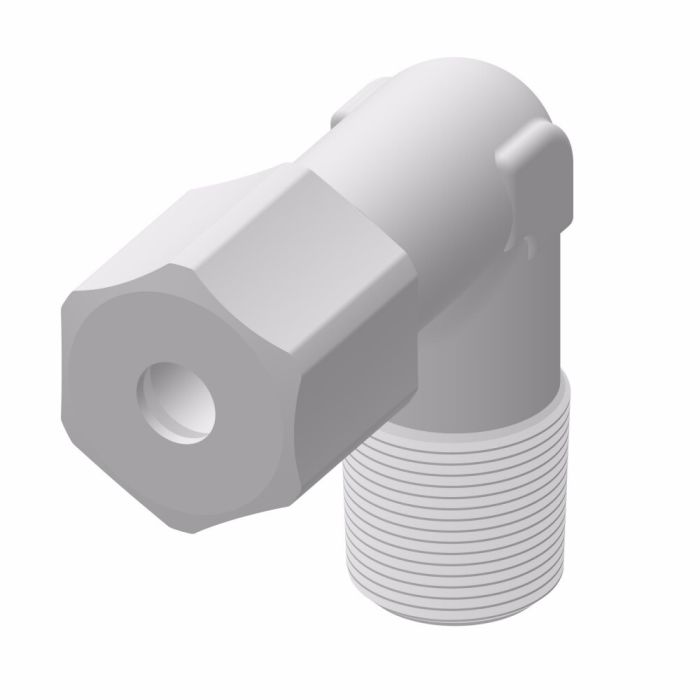

Male Elbow 1569X4G

Specifications

Certifications NSF Listed	Drop Dimension 0.81	Brand Danfoss (Aeroquip Inc-Industrial Hose)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13556	End Size 1 0.25	End Size 2 0.13	End Type 1 Line/Hose/Tube	End Type 2 NPTF	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	ICC Elbow Adapters	Item Type Line/Hose/Tube Female/NPTF Male 90° Elbow Adapter	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Nylon	Product Width 0.37	Sub Brand None	Supplier Part Number 1569X4G	Product Weight 0.01 lbs

Product Questions & Answers 3

Product Questions & Answers

what thread size is the male end on this fitting, is it 1/8 NPT?

Question by: Dwight R on Jun 17, 2025, 12:36 PM

the male end is 1/8 NPTF. The female side connects to 1/4 inch line, hose, or tube. So you've got a 90 degree elbow that steps down between those two sizes, which comes in handy when you're working in a tight spot and need to change direction without a lot of extra fittings in the way.

Answer by: Customer Support on Jun 18, 2025, 3:56 PM

i'm trying to replace an elbow on a small nylon compression line. is this the 90 degree adapter with a 1/4 female tube end and 1/8 NPTF male on the other side?

Question by: Jimmy R on Dec 25, 2025, 8:21 AM

This part is a line or tube female end in 0.25 size on one side, and a 0.125 NPTF male end on the other, built as a 90° elbow adapter.

Answer by: Customer Support on Dec 27, 2025, 6:59 AM

Will this nylon elbow hold up okay if I'm runnin' hydraulic lines outside?

Question by: Jean R on Apr 29, 2025, 8:38 PM

Nylon provides good resistance to corrosion, which should help with outdoor use. However, keep in mind that this elbow is made of nylon, so it might not be the best choice for extreme temperature or pressure conditions.

Answer by: Customer Support on May 1, 2025, 6:30 AM
